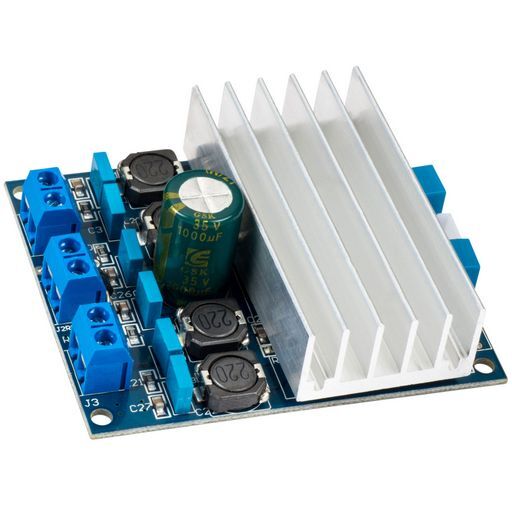

This is a AMPLIFIER BOARD CLASS-D DIY 2X 50W of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title AMPLIFIER BOARD CLASS-D DIY 2X 50W
Notes STEREO 50W TDA7492 DUAL BTL Class-D Digital Audio Amplifier with high quality sound and high power output. This small compact amplifier board is ideal for applications where high power is required in a limited space. Overall sound output is very pleasant and easy to listen to for extended periods.Class D = 2 x 50Wrms @6Ω (Optimised) 24Vdc, 2x 40Wrms @8Ω 25Vdc, 2x 20Wrms @8Ω 18VdcGain = 33.6dB, see datasheet for further specifications90% Efficient STMicroelectronics TDA7492 chipOperating voltage and current: 10VDC – 26VDC, 4A max.Short-circuit and over-temperature protectionHeat-sink includedSize: 71x60x18.7mm10cm stereo input wiring harness to bare wire terminalsScrew connectors for easy Speaker and Power terminations Note. Recommended DC power supply voltages: 4 ohms speakers Max 18V 6 ohms speakers Max 24V 8 ohms speakers Max 26V
Power2x50W
ManufacturerDayton Audio
Chip SetTDA7492
SKU NoWES_DAA250_2
