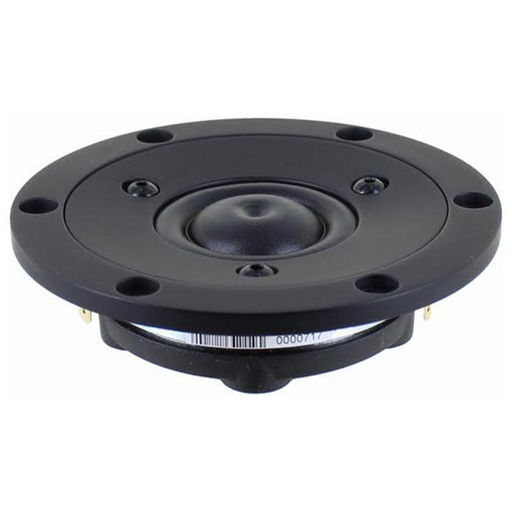

SATORI 1¼ RING TWEETER NEO
SATORI 1¼ RING TWEETER NEO
SKU code: WES_TW29RN-B8_1
This is a SATORI 1¼ RING TWEETER NEO of brand Satori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 1¼ RING TWEETER NEO |
| Notes | The TW29RN-B-8 is a premium ring dome tweeter offered in the Satori line by SB Acoustics. This tweeter has many advanced technology features that culminate in very detailed and low distortion output: a perfect choice in any high end system. Compact neodymium magnet version (less than 1 depth from back of flange to base). 8 ohm version. Black faceplate.Non-resonant diaphragm design for minimum high frequency break-upTwo part aluminium faceplate with integrated mechanical decouplingDual balanced compression chambers for improved dynamicsDual copper caps for absolute minimum voice coil inductance and minimum phase shiftHigh saturation neodymium motor system with T-shaped pole piece for lower distortionNon-reflective cast aluminium chamber with optimized damping for improved dynamicsShallow flow optimized magnet structure for optimum coupling to rear chamberCCAW voice coil for low moving mass and Long life silver lead wiresLow resonance frequency for extended range |
| Description | Satori 29mm Patented ring textile dome, neodymium motor, black aluminium faceplate |
| Coil | 29mmØ |
| Depth | 26.7mm |
| Fs | 650Hz |
| Impedance | 8Ω (Re 6.2Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 1¼' |
| Le | 0.04mH |
| Mag. | 0.1kg |
| Manufacturer | Satori |
| Mms | 0.42g |
| Power | 80Wrms |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| Prms | 80W |
| Colour | Black |
| Qes | 0.66 |
| Qms | 1.74 |
| Qts | 0.48 |
| QTY | 1 |
| Re | 6.2Ω |
| Sd | 9.6cm² |
| Sens. | 93dB |
| Series | Satori |
| Size | 1¼' |
| Type | Dome Tweeter |
| Width | 103.8mmØ |
| Zn | 0.04mH |
| Bl | 4.1Tm |
| Xmax | 0.4mm |
| Flux (lm) | 1.5T |
| Page | 10 |
| eBook | Link to eBook |
| SKU No | WES_TW29RN-B8_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | TW29RN-B8 |
| SKU | WES_TW29RN-B8_1 |
| Brand | Satori |
