SATORI 6½ MID-WOOFER - TEXTREME
SATORI 6½ MID-WOOFER - TEXTREME
SKU code: WES_MW16TX-8_1
This is a SATORI 6½ MID-WOOFER - TEXTREME of brand Satori.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SATORI 6½ MID-WOOFER - TEXTREME |

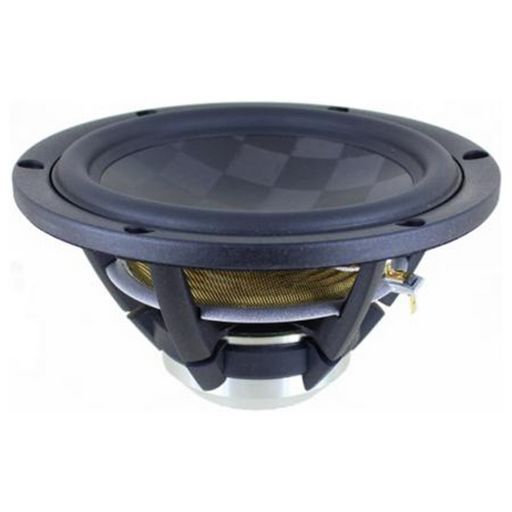

| Notes | New in the premium SB Acoustic Satori line is the premium 6½″ woofer with Neodymium magnet, aerodynamic chassis and woven TeXtreme® cone. TeXtreme® is an advanced, super thin carbon fibre fabric that maximises the strength-to-weight ratio. The spread tow technology offers several advantages over regular tow fabrics, such as very low crimp, lower weight and improved cosmetics (cones are very flat and smooth). The laminated thin-ply TeXtreme® material has an excellent stiffness-to-weight ratio (though surpassed by beryllium, it is also significantly less expensive). Available in 4 ohm and 8 ohm models.Advanced TeXtreme® coneVented aerodynamic cast aluminium chassisSoft low damping rubber surroundAdvanced BIMAX spiderPowerful optimized low distortion neodymium motor systemExtended copper sleeve on pole pieceNon-conducting fibre glass voice coil formerVented pole piece and voice coilLight weight CCAW voice coilLong life silver lead wires |
| Description | 36mm Voice coil, Textreme cone, rubber surround, neodymium motor, aluminium chassis |
| Coil | 36mmØ |
| Depth | 75.6mm |
| Fs | 29.3Hz |
| Impedance | 8Ω (Re 6.2Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 6.5' |
| Le | 0.20mH |
| Mag. | 0.13kg |
| Manufacturer | Satori |
| Mms | 12.3g |
| Power | 60Wrms |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| Prms | 60W |
| Qes | 0.35 |
| Qms | 4.7 |
| Qts | 0.33 |
| QTY | 1 |
| Re | 6.2Ω |
| Sd | 119cm² |
| Sens. | 87.5dB |
| Series | Satori |
| Size | 6.5' |
| Type | Woofer |
| Vas | 48L |
| Width | 165mmØ |
| Zn | 0.20mH |
| eBook | Link to eBook |
| Rms | 0.48kg/s |
| Flux (lm) | 1.17T |
| Page | 12 |
| Xmax | 12mm |
| Cms | 2.4mm/N |
| Bl | 6.3Tm |
| SKU No | WES_MW16TX-8_1 |
