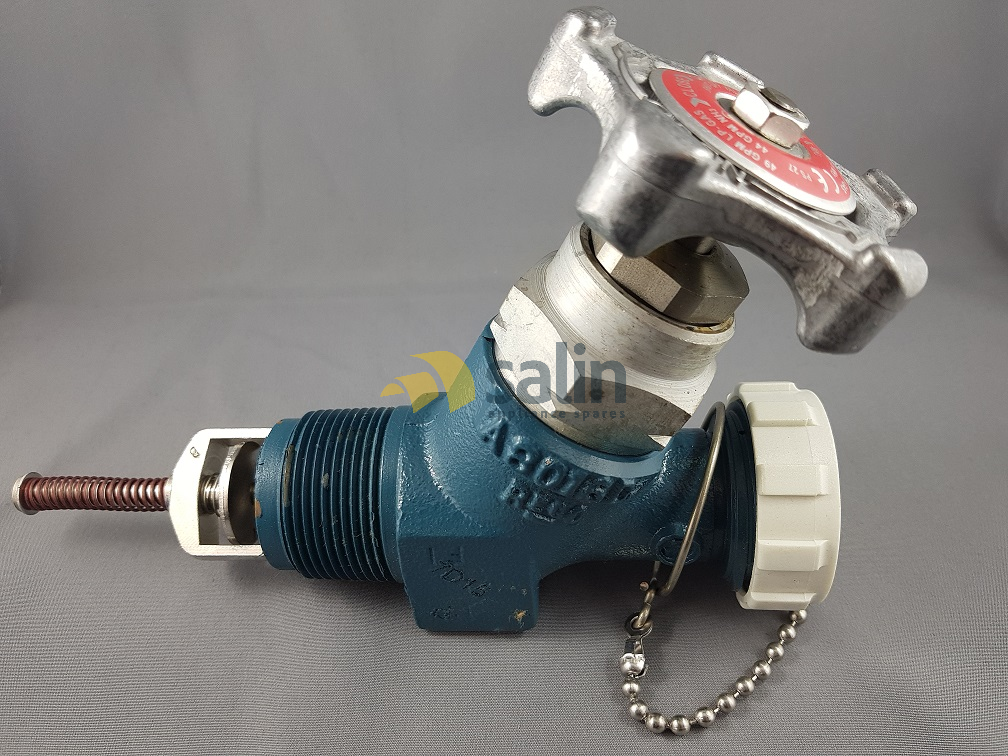

This is a replacement 1 1/4″ mnpt x 1 3/4″ acme nh3 multivalve valve.

SALIN is a leading Australian appliance spare parts distributor specializing in REGO PRODUCTS appliances. We take pride in our ability to bring hard-to-find REGO PRODUCTS spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our REGO PRODUCTS range is genuine.

TECHNICAL SHEET
Title1 1/4″ MNPT x 1 3/4″ ACME NH3 Multivalve Valve for LPG CARAVAN SHOP RESTUARANT
BrandRegO Products
Notes
MULTIVALVE NH3 VALVE 1 1/4″ MNPT X 1 3/4″ ACME
Application:

Designed specifically for use as a manual valve or vapor equalizing valve on anhydrous ammonia applicator and nurse tanks. This valve incorporates an integral excess flow valve. When product is required, the valve must be completely open and back seated to allow the excess flow valve to function properly.

Features:

• Positive-acting excess flow valve opens for maximum flow at minimum pressure drop when filling — regardless of the type of coupling in which the valve is installed.
• Excess flow seat is fully contained in the tank coupling for maximum protection in the event of external damage to the valve.
• Resilient seat disc assembly is fully contained on three sides for bubble-tight shut-off and long service life.
• “V”-ring spring-loaded stem seal design requires no repacking or field adjustment.
• Specially machined break-away groove beneath ACME threads will shear-off with excessive pull on the hose and leave the valve body intact.
• Plugged ¼” NPT boss accommodates vent valve or hydrostatic relief valve.

Materials

Body………………………………………………………………………. Ductile Iron
Bonnet…………………………………………………………………………….. Steel
“V”-Rings………………………………………………………………………… Teflon
Stem…………………………………………………………………. Stainless Steel
Seat Disc…………………………………………… Resilient Synthetic Rubber
Excess Flow Valve……………………………… Stainless Steel–Steel Body
Springs……………………………………………………………… Stainless Steel

SKU NumberGMC_000132
