.1×2 3G-SDI VIDEO SCALER
.1×2 3G-SDI VIDEO SCALER
SKU code: WES_CSDI-12SR_1

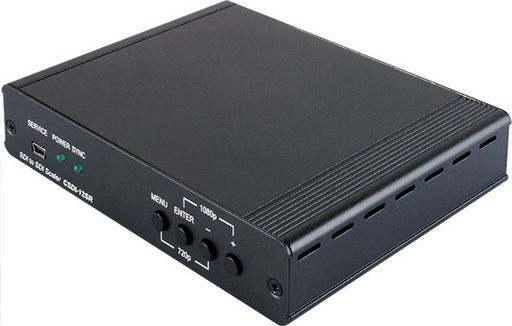

This is a .1×2 3G-SDI VIDEO SCALER of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .1×2 3G-SDI VIDEO SCALER |
| Notes | The CSDI-12SR allows an SD-SDI, HD-SDI and 3G-SDI signal to be scaled and split to two simultaneous SDI outputs, providing bandwidth up to 2.970 Gbps for 3G-SDI video support allowing the user to distribute and extend their SDI signal. The On-screen Display (OSD) menu can be controlled from the front panel, allowing quick and easy adjustment of all settings. SDI interface operates at bitrates of 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.970Gbps and 2.970/1.001Gbps. Audio supports up to 8 channels at 48kHz.Splits an SDI input to two SDI outputs with scaler functionSupports scaling of any SDI input to any SDI output to SDI standardsSupports SD-SDI, HD-SDI and 3G-SDI input/output signals with autodetectionSDI interface operates at bitrates of 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.970Gbps and 2.970/1.001GbpsSupports SDI input/output modes/standards: SD-SDI, HD-SDI, 3G-SDISD-SDI/SMPTE 259M-C@270 MbpsHD-SDI/SMPTE 292M@1.485Gbps and 1.485/1.001Gbps3G-SDI/SMPTE 424M and SMPTE 425M (Level A and Level B)@2.970Gbps and 2.970/1.001GbpsAudio supports up to 8 channels at 48kHzSupports SDI input/output distances up to 300m (SD-SDI), 200m (HD-SDI) or 100m (3G-SDI) |
| Description | SDI to 2x SDI Scaler |
| Input | 1x SDI |
| Output | 2x SDI |
| Upscaled TV Res. | SMPTE 424M/425M |
| Upscaled PC Res. | - |
| Downscaled TV Res. | SMPTE 259M-C |
| Downscaled PC Res. | - |
| Frame Rate Conversion | - |
| Manufacturer | Cypress |
| Brand. | Cypress |
| SKU No | WES_CSDI-12SR_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CSDI-12SR |
| SKU | WES_CSDI-12SR_1 |
| Brand | Cypress |
