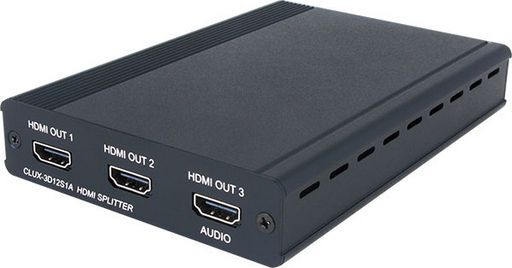

1×2 HDMI 3D SPLITTER WITH ADDITIONAL 1x AUDIO-ONLY HDMI OUTPUT - CYPRESS
CYPRESS
SKU code: WES_CLUX-3D12S1A_1
This is a 1×2 HDMI 3D SPLITTER WITH ADDITIONAL 1x AUDIO-ONLY HDMI OUTPUT - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1×2 HDMI 3D SPLITTER WITH ADDITIONAL 1x AUDIO-ONLY HDMI OUTPUT - CYPRESS |
| Notes | CYPRESS The 1 by 2 HDMI splitter with integrated audio is fully compliant with HDMI and allows the output from any HDMI equipped device to be split allowing connection to up to two HDTV displays e.g. an LCD TV and a projector in the same room. The third HDMI output is an audio with blue screen output, which means it can be connected to an AV Receiver that does not support 3D signals.Deep Colour video up to 12-bit, 1080p@24/60 HzOne HDMI source to connect up to two HDMI displays simultaneouslyOne audio-only HDMI output connected to an AVRSplits an HDMI source to two outputs without signal lossSupports LPCM 7.1CH, Dolby Digital and Dolby Digital Plus Audio transmission (32–192 kHz Fs sample rate)Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480i to 1080pHDMI cable distance supports up to 15m at 1080p/8-bit or 12-bit resolutionDetects the video’s EDID information based on HDMI OUT 1 and the audio’s EDID based on HDMI OUT 3 |
| Input | 1x HDMI |
| Output | 2x HDMI, 1x HDMI(audio only) |
| 3D | Yes |
| CEC | Bypass |
| EDID | - |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | - |
| ARC | - |
| HEC | - |
| Deep Colour | Yes |
| Max Res. | 1080p |
| Manufacturer | Cypress |
| IR | - |
| PoE | - |
| Ethernet | - |
| RS-232 | - |
| Cable Length | 15M |
| Brand. | Cypress |
| Interface | HDMI |
| SKU No | WES_CLUX-3D12S1A_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CLUX-3D12S1A |
| SKU | WES_CLUX-3D12S1A_1 |
| Brand | Cypress |
