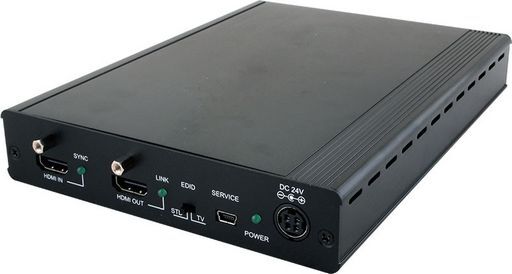

1×3 HDMI OVER HDMI AND HDBaseT SPLITTER 4K30 WITH LAN SERVING - CYPRESS
HDMI IN TO 3x HDBaseT OUT + HDMI BYPASS 24V PoC
SKU code: WES_CHDBT-1H3CE_1
This is a 1×3 HDMI OVER HDMI AND HDBaseT SPLITTER 4K30 WITH LAN SERVING - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1×3 HDMI OVER HDMI AND HDBaseT SPLITTER 4K30 WITH LAN SERVING - CYPRESS |
| Notes | HDMI IN TO 3x HDBaseT OUT + HDMI BYPASS 24V PoC The HDMI over HDMI and HDBaseT splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving to up to three CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K @ 30Hz, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three CAT5e/6/7 outputs can be connected to CAT5e/6/7 to HDMI receivers to extend the operating distance up to 100 metres. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Ethernet (PoE) function can power compatible receivers, providing greater flexibility in installations.HDMI with 4K2K resolution and 3D support, HDCP and DVI compliantSimultaneous HDMI and CAT5e/6/7 outputsSupports data rate from 300 Mbps up to 3 GbpsSupports a wide range of PC resolutions from VGA to WUXGA (RB) and HDTV resolutions up to 4K2K (3840×2160@30 Hz and 4096×2160@24 Hz)Supports transmission of High Definition audio: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio (32 kHz~192 kHz sample rate)Supports distances up to 100 metres over CAT5e/6/7 cablesSupports Ethernet network rates up to 100 MbpsSupports selection of Standard or TV EDID settingsSupports PoC with compatible receiver unitsSupports control of devices via 2-way IR3D signal display is dependent on the TV/Display’s EDID settings Requires compatible HDMI over HDBaseT receivers such as: CH-1109RXC, CH-501RX, CH-506RX, CH-507RX |
| Input | 1x HDMI |
| Output | 1x HDMI, 3x CAT5e/6/7 |
| IR | Yes |
| Cable Length | 100M |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | - |
| Max Res. | 4K @30Hz |
| Compatible with | CH-1109RXC, CH-501RX, CH-506RX, CH-507RX |
| Manufacturer | Cypress |
| Extender Cable | CAT5e/6/7 |
| Brand. | Cypress |
| Interface | HDMI |
| SKU No | WES_CHDBT-1H3CE_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CHDBT-1H3CE |
| SKU | WES_CHDBT-1H3CE_1 |
| Brand | Cypress |
