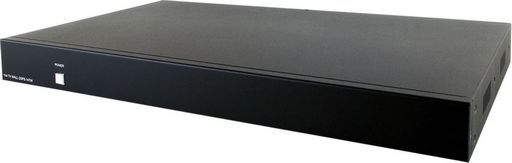

1×4 HDMI FULL HD SEAMLESS QUAD SPLITTER
CYPRESS
SKU code: WES_CDPS-14TW_1
This is a 1×4 HDMI FULL HD SEAMLESS QUAD SPLITTER of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1×4 HDMI FULL HD SEAMLESS QUAD SPLITTER |
| Notes | CYPRESS This HDMI Video Wall Controller allows a single HDMI source to be displayed on up to 4 HDMI displays (TV or monitor) and/or cascade to additional units to extend the number of displays in the video wall configuration. The user-friendly PC control application allows full control over single or multiple devices in a Video Wall control system, including picture adjustment and full bezel correction. It supports video resolutions up to WUXGA@60Hz (RB) and 1080p@60Hz, audio formats up to 7.1CH LPCM at 192kHz sampling rate dependent upon the source devices resolution capabilities. All operation and control can be done via IP (Telnet/PC application) and RS-232 commands.Note: Please always uninstall / remove the old version of TV Wall Set software application, before install the new version.HDMI, HDCP1.1 and DVI compliantOutput a single source image to 4 displays (in a 2 by 2 Video Wall configuration) with adjustable Bezel CorrectionCascade/Bypass the HDMI signal up to as many units as required, increasing the number of displays in the MxN Video WallSupports Input resolutions of VGA~WUXGA and 480i~1080pSupports IP (Telnet/PC Application) and RS-232 controlSupports Output resolutions 720p@50/60Hz, 1080p@50/60Hz and several PC timingsSupports different input resolutions and output resolutions selectable using PC application (Factory default settings of the output signal are 720p@60Hz video and LPCM 2CH audio)Supports pass-through of audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio |
| Input | 1x HDMI |
| Output | 4x HDMI |
| 3D | - |
| CEC | - |
| EDID | Yes |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | - |
| ARC | - |
| HEC | - |
| Deep Colour | Yes (Input) |
| Manufacturer | Cypress |
| IR | - |
| PoE | - |
| Brand. | Cypress |
| Interface | HDMI |
| Ethernet | Yes |
| RS-232 | Yes |
| SKU No | WES_CDPS-14TW_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CDPS-14TW |
| SKU | WES_CDPS-14TW_1 |
| Brand | Cypress |
