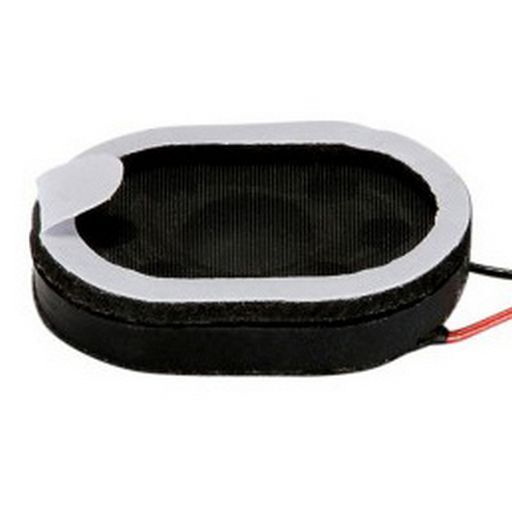

1⅛ MICRO SPEAKER 8 OHM - DAYTON AUDIO
1⅛ MICRO SPEAKER 8 OHM - DAYTON AUDIO
SKU code: WES_CE20-14M-8_1
This is a 1⅛ MICRO SPEAKER 8 OHM - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1⅛ MICRO SPEAKER 8 OHM - DAYTON AUDIO |
| Notes | The Commercial Engineering (CE) series of speaker drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. The CE20-14M-8 micro speaker is the smallest driver in Dayton Audio’s CE Series. Featuring a racetrack-shaped, lightweight Mylar diaphragm and neodymium magnet, the CE20-14M achieves useful levels of audio output from a speaker that’s only ½” wide and ¾” long, for the very smallest audio applications. Its uses include telephone handsets, tablet PCs, and even miniature on-ear headphones. Mylar diaphragm and plastic frame, plus a strong Neodymium magnet, for high output from an incredibly tiny driver.Ultra-miniature sizeLightweight Mylar diaphragmPowerful neodymium magnetPre-attached film adhesive for mountingProtective screen grille |
| Description | 3/4' x 1/2' Micro Speaker |
| Type | Micro Speaker |
| Size | 3/4' x 1/2' |
| Power | 0.25W |
| Coil | 10mm |
| Impedance | 8Ω (Re 7.03Ω) |
| Depth | 4.9mm |
| Sens. | 77dB |
| Re | 7.03Ω |
| Qms | 2.21 |
| Qes | 19.9 |
| Qts | 1.46 |
| Vas | N/A |
| Sd | 1.77cm² |
| Cms | N/A |
| Fs | 1297Hz |
| Mms | N/A |
| Zn | 8Ω |
| Le | 0.36mH |
| Diam. | 20x14mm |
| Prms | 0.25W |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 3/4 x 1/2 |
| Series | CE Series |
| Manufacturer | Dayton Audio |
| Dimensions | 20x14x4.9mm |
| QTY | 1 |
| Price Type | each |
| SKU No | WES_CE20-14M-8_1 |
