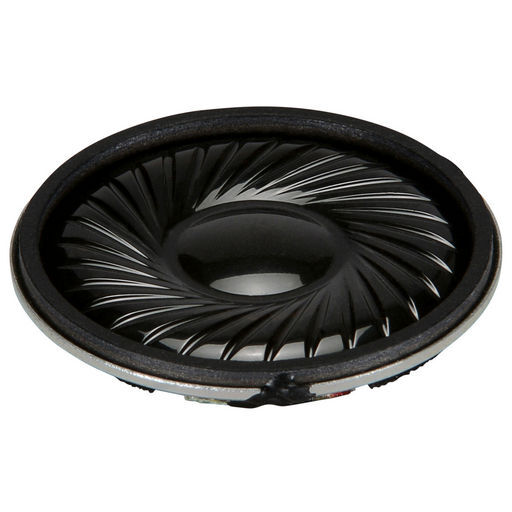

1½ MINI SPEAKER BLACK 32 OHM
SUITABLE REPLACEMENT FOR HEADPHONE DRIVERS
SKU code: WES_CE38MB-32_1
This is a 1½ MINI SPEAKER BLACK 32 OHM of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1½ MINI SPEAKER BLACK 32 OHM |
| Notes | SUITABLE REPLACEMENT FOR HEADPHONE DRIVERS The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. Featuring a smooth-sounding and feather-light Mylar diaphragm and high 32 ohm impedance, makes it an easy load for the integrated headphone amplifier in most portable music devices and phones, while the 38mm frame replaces most 40 mm nominal size headphone drivers. It’s also a great fit for other low-power mini speaker applications, such as electronic toys, speakerphones, and intercoms. Sold in singles.Lightweight mylar diaphragmRugged steel frame with front gasketPowerful neodymium magnetSuitable for headphone applications32 ohm impedance Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille. |
| Description | 1½' Mini speaker, 32 OHM, Black |
| QTY | 1 |
| Price Type | each |
| Cms | - |
| Coil | 12.7mmØ |
| Depth | 5.6mm |
| Diam. | 40mmØ |
| Fs | 137.9Hz |
| Impedance | 32Ω (Re 31.98Ω) |
| Impedance (Ohm) | 32 ohm |
| Inch | 1.5 |
| Le | 1.31mH |
| Manufacturer | Dayton Audio |
| Mms | 0.06g |
| Power | 0.25W |
| Power (RMS) | 0-50 Watt |
| Prms | 0.25W |
| Qes | 1.15 |
| Qms | 0.66 |
| Qts | 0.42 |
| Re | 31.98Ω |
| Sd | 4.91cm² |
| Sens. | 78dB |
| Size | 1.5' |
| Type | Mini Speaker |
| Vas | 0.72L |
| Zn | 32Ω |
| Series | CE Series |
| SKU No | WES_CE38MB-32_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CE38MB-32 |
| SKU | WES_CE38MB-32_1 |
| Brand | Dayton Audio |
