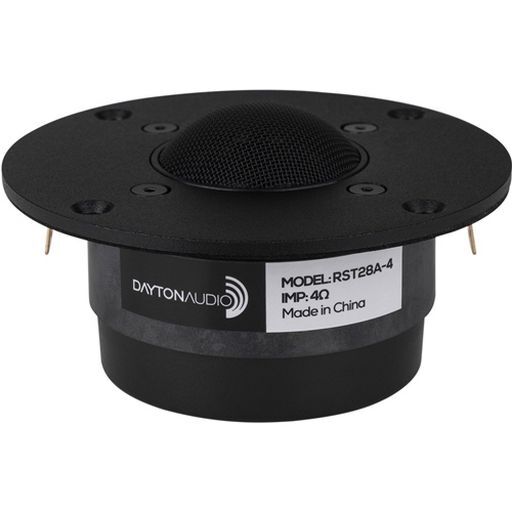

1⅛ REFERENCE SERIES DOME TWEETER
ALUMINIUM DOME TWEETER
SKU code: WES_RST28A-4_1
This is a 1⅛ REFERENCE SERIES DOME TWEETER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1⅛ REFERENCE SERIES DOME TWEETER |
| Notes | ALUMINIUM DOME TWEETER The Dayton Audio RST28A-4 aluminium dome Reference Series tweeter offers exceptional efficiency from 1,500 Hz to 20,000 Hz with smooth and well controlled frequency response. This tweeters unique black anodized 1-1/8 aluminium diaphragm and state-of-the-art motor system not only match the look and features of Dayton Audios Reference Series woofers and midranges, but also the clean, detailed, and uncoloured sound you have come to expect. A specialized damped rear chamber, well-designed phase bridge, rigid mesh grill, and several distortion-reducing paths in the motor are just a few of the features that allow these tweeters to outperform some the most expensive audiophile high-frequency transducers.Remarkable clarity without the typical harshness of metal domesExceptional efficiency at 92.5 ±3dB from 1.5 kHz to 19 kHz and a smooth frequency responseWell-designed phase bridge to balance response in the upper octaveTuned rear chamber and Ferrofluid for great low-end responseLow-distortion motor system achieves a rare level of transparencyMatches the performance of even the most expensive audiophile high-frequency transducers |
| Description | 1-1/8' Reference Series Aluminum Dome Tweeter 4 Ohm |
| Manufacturer | Dayton Audio |
| Impedance | 4Ω (Re 3Ω) |
| Impedance (Ohm) | 4 ohm |
| Inch | 1.125 |
| Zn | 4Ω |
| Re | 3.0Ω |
| Fs | 775Hz |
| Power | 80Wrms |
| Power (RMS) | 51-100 Watt |
| Sens. | 92.5dB |
| Qms | 2.15 |
| Qes | 1.65 |
| Qts | 0.93 |
| Size | 1.125' |
| Diam. | 105mmØ |
| Hole | 73mmØ |
| Depth | 45mm |
| Le | 0.03mH |
| QTY | 1 |
| Frequency | 1500Hz - 20KHz |
| Sd | 6.6cm² |
| Prms | 80W |
| Colour | Black |
| Price Type | each |
| Series | Reference Series |
| Type | Tweeter |
| SKU No | WES_RST28A-4_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | RST28A-4 |
| SKU | WES_RST28A-4_1 |
| Brand | Dayton Audio |
