10×10 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC & AUDIO MATRIXING
10×10 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC & AUDIO MA
SKU code: WES_CPLUS-1082VA_1

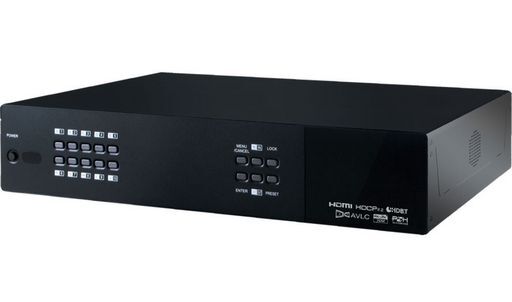

This is a 10×10 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC & AUDIO MATRIXING of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 10×10 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC & AUDIO MATRIXING |
| Notes | 10×10 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC & AUDIO MATRIXING This 10×10 HDMI/HDBaseT Matrix supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio (multi-channel digital/stereo analog) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as ten UHD sources may be routed to any of eight HDBaseT outputs (up to 100m at 1080p or up to 70m at 4K) or two HDMI outputs at resolutions up to 4K@60Hz (8-bit, Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. The HDMI outputs can also be set to mirror any of the HDBaseT outputs for local monitoring.Beyond basic video routing, this unit also incorporates an independent audio matrix with 14 audio outputs and 10 audio inputs. Offering discrete audio routing, insertion and extraction, this product makes it easy to have multiple audio zones within your installation. Four additional analog audio outputs are available to provide stereo breakout audio from the associated HDBaseT output (LPCM 2.0 only). This unit also contains 3 independent audio mixers allowing for the addition of music or a voice over to existing audio and video (LPCM 2.0 only). This product supports the OAR (Optical Audio Return) feature, found on compatible HDBaseT receivers, allowing optical audio sources connected to those receivers to be sent back to the matrix unit for redirection. All HDMI and HDBaseT ports support up to 7.1 channel LPCM digital audio as well as Bitstream and HD Bitstream audio formats.Integrated LAN support allows your 100BaseT network to be extended across compatible HDBaseT Receivers to smart TVs or projectors. Internally generated test patterns (up to 1080p) are provided to assist with setup, providing a simple way to verify matrix functionality. The PoH (Power over HDBaseT) functionality provides remote power to compatible HDBaseT Receivers, providing greater flexibility in your installations. Control is via front panel buttons with OLED menu, WebGUI, Telnet, RS-232 or IR remote.HDMI with HDR & 4K@60Hz support, DVI 1.0 compatibleHDCP 1.x and HDCP 2.2 compliantRoutes ten HDMI sources to ten displays using eight HDBaseT outputs and two independent or mirrored HDMI outputsSupports up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and outputSupports Deep Color input and output up to 12-bitSupports 10-bit and 12-bit HDR bypassIntegrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality via compatible HDBaseT ReceiversSupports automatic 4K@60Hz (4:4:4) to 4K@60Hz (4:2:0) and 10/12-bit color to 8-bit color conversion when connected to non-AVLC HDBaseT Receivers Supports automatic 4K (4:4:4) to 1080p scaling over the HDBaseT outputs when connected to displays that can't support 4K resolutionsSupported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control (Bidirectional IR/RS-232 pass through)All HDBaseT outputs support OAR (Optical Audio Return)4K signals can be transmitted up to 70m via Cat.5e/6 and up to 100m via Cat.6a/7Supports pass-through of these standard digital audio formats via HDMI/HDBaseT: LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamSupports audio matrix functionality enabling full audio management of the system including HDBaseT audio selection, fully independent audio-only zones and HDMI audio embedding and de-embedding (LPCM only)Advanced DAC (Digital to Analog Conversion) and ADC (Analog to Digital Conversion) for audio integrationSupports integrated audio over CAT inputs and outputs for transmission up to 300mSupports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analog audio outputs and mute on all outputsAudio mixer functionality (three mixers in total)Advanced internal and external EDID management with 4 sets of configurable EDID settingsInternal test pattern generation (up to 1080p) for self and sink testing2U rack mounted designControl via front panel buttons with OLED menu, Ethernet (Telnet & WebGUI), RS-232, and IR remote Requires HDMI over HDBaseT receivers such as: CH-1529RXV |
| Description | 10×10 HDMI/Audio over HDBaseT Matrix with LAN, Optical Audio Return and 48V power to receivers - AVLC Compatible |
| 4K | Yes |
| AVLC | Yes |
| Bandwidth | HDMI: 18Gbps, HDBaseT: 10.2Gbps |
| Cable Length | HDMI: 3M(4K), HDBaseT: 70M (4K) |
| Chassis. | Metal |
| Controller | 9×IR Extender, 11×IR Blaster, 1x RS-232, 1x RJ45(control), 1x USB(service) |
| Dimensions | 483x356x96mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 10x HDMI, 8x (Stereo), 2x TOSLINK, 2xCoaxial(SPDIF), 2×Cat.5e(Bi-directional Audio) |
| IR | Yes |
| Max Res. | 4K@60Hz (4:4:4) |
| Output | 2x HDMI, 8xCat.5e/6/7, 16x RCA(stereo), 8xRCA(extended stereo audio), 2×Cat.5e(Bi-directional Audio) |
| PoE | PoH |
| Receiver | CH-1529RXV |
| RS-232 | Yes |
| Size | 483x356x96mm |
| Compatible with | CH-1529RXV |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-1082VA_1 |
