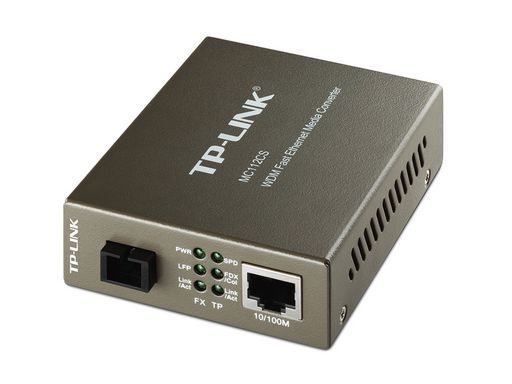

This is a 10/100MBPS WDM MEDIA CONVERTER TP-LINK of brand TP-Link.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 10/100MBPS WDM MEDIA CONVERTER TP-LINK
Notes CONVERT BETWEEN 100BASE-FX AND 100BASE-TX The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK’s media converter MC111CS is just one of the examples to cooperate with MC112CS. Other features of this module include the ability to be used as a stand alone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX portProvide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX portLink Fault Passthrough and Far End Fault minimize the loss caused by link failure timelyAdopts WDM technology, transmitting and receiving data on one single fiberExtend fiber distance up to 20kmEasy-to-view LED indicators provide status to monitor network activity easilyExternal power supply
Description10/100Mbps RJ45 to 100Mbps single-mode SC fibre Converter, Full-duplex,Tx:1310nm, Rx:1550nm, up to 20Km, switching power adapter, chassis mountable
OEMMC112CS
ManufacturerTP-Link
SKU NoWES_MC112CS_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN MC112CS
SKU WES_MC112CS_1
Brand TP-Link
