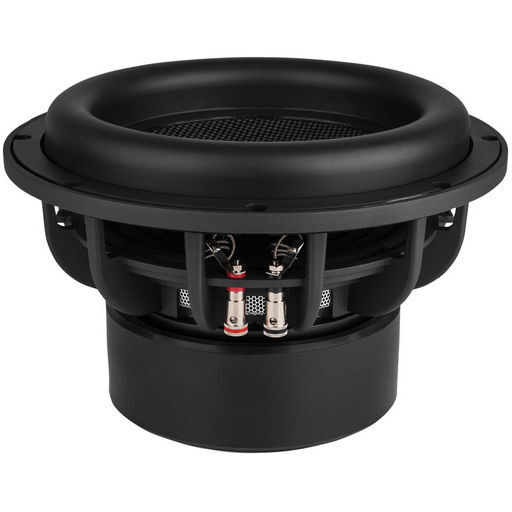

10 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO
10 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO
SKU code: WES_UM10-22_1
This is a 10 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 10 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO |
| Notes | Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. The UM10-22 10 subwoofer has dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility. To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils. Over 1-1/2 of travel (3/4 Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. Tall-boy rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation. A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for faster response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.Dual 2 ohm, 2-layer copper voice coilsLarge vented pole piece and under-spider venting500 watts RMS power handlingBlack anodised aluminium former and black pole improves heat dissipationThick, one-piece Nomex honeycomb covered cone with woven heavy-duty glass-fiberTall-boy rubber surround for extra-long linear excursion without reducing cone surface areaDual linear stiffness spiders limit distortion and rocking modes |
| Description | 10' Ultimax DVC Subwoofer 2 ohms Per Coil |
| Cms | 0.15mm/N |
| Coil | 63.5mmØ |
| Depth | 145mm |
| Diam. | 273.5mmØ |
| Fs | 26.9Hz |
| Impedance | 2x2Ω (Re 3.2Ω) |
| Impedance (Ohm) | 2+2 ohm |
| Inch | 10 |
| Le | 1.28mH |
| Manufacturer | Dayton Audio |
| Material | Fibreglass |
| Mms | 227g |
| Power | 500Wrms |
| Power (RMS) | 200+ Watt |
| Price Type | each |
| Qes | 0.59 |
| Qms | 3.08 |
| Qts | 0.49 |
| QTY | 1 |
| Re | 3.2Ω |
| Sd | 327.8cm² |
| Sens. | 84.8dB |
| Series | Ultimax Series |
| Size | 10' |
| Type | Subwoofer |
| Vas | 23.5L |
| Zn | 2x 2Ω |
| SKU No | WES_UM10-22_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | UM10-22 |
| SKU | WES_UM10-22_1 |
| Brand | Dayton Audio |
