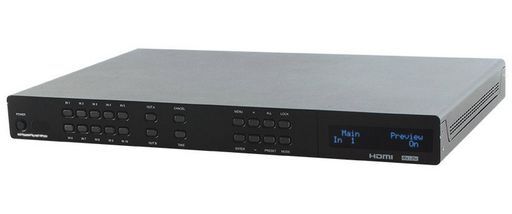

10x2 HDMI MATRIX 4K30 - CYPRESS
RS232 ETHERNET WEB GUI IR REMOTE CONTROL
SKU code: WES_CDPS-U10H2HFS_1
This is a 10x2 HDMI MATRIX 4K30 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 10x2 HDMI MATRIX 4K30 - CYPRESS |
| Notes | RS232 ETHERNET WEB GUI IR REMOTE CONTROL This 10 by 2 HDMI 4K UHD Matrix is an advanced solution for switching up to 10 HDMI inputs to two HDMI outputs. It provides high performance pass-through of video/audio and is capable of receiving and transmitting 300MHz/9Gbps bandwidth rate with no data loss. It’s Fast Switching technology can greatly reduce the time required to swap between inputs. Supporting the latest features you can be assured of reliable and high quality HDMI distribution. Supports UHD resolutions up to 4K@30Hz. Supports control via IR, RS-232, Telnet and WebGUI controls.HDMI matrix with 10x HDMI inputs and 2x HDMI outputsSupports UHD resolutions up to 4K2K@24/25/30Hz & 4K2K YUV420@60HzSupports HDTV resolutions up to 1080@60Hz, ‘Deep Color’ 36/30/24-bit and PC resolutions up to WUXGA@60Hz(RB)Supports 3DSupports pass-through of audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master AudioSupports EDID selection functionSupports control via IR, RS-232, Telnet and WebGUI controlsInput port HDCP support Standard and Apple mode (The Apple mode selection to guarantees the use of Apple devices)Compliant with DVI source |
| 3D | Yes |
| 4K | Yes |
| ARC | - |
| CEC | - |
| Deep Colour | Yes |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| HEC | - |
| Input | 10x HDMI |
| Output | 2x HDMI |
| Max Res. | 4K @ 30Hz |
| Manufacturer | Cypress |
| SKU No | WES_CDPS-U10H2HFS_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CDPS-U10H2HFS |
| SKU | WES_CDPS-U10H2HFS_1 |
| Brand | Cypress |
