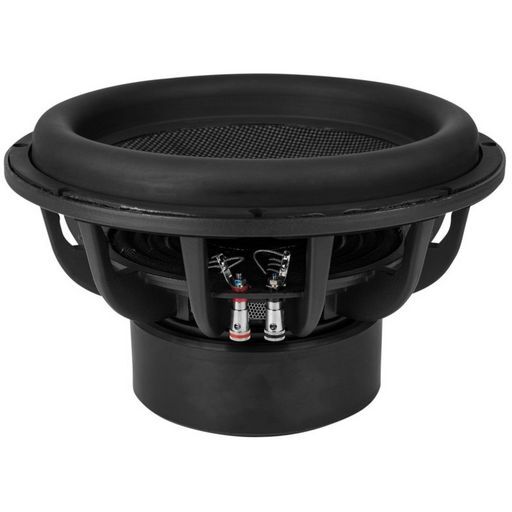

This is a 12 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 12 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO
Notes DAYTON AUDIO Dayton Audio's 12” Ultimax Series DVC subwoofer is purpose-built to move air and create clean, articulate, fast bass. It has dual 2-ohm voice coils allow for stereo 2-ohm and mono 1-ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4-ohm load for greater amplifier compatibility. To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodised formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils. Over 1-1/2 of travel (3/4 Xmax) is kept completely linear using dual spiders that also limit distortion and rocking modes. Tall-boy rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibres creating ultra-still cones that resist deformation. A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for faster response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring QTS down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.Extra-thick, one-piece Nomex honeycomb covered speaker cone with woven heavy-duty glass-fibre for maximising strength and rigidity with high SPLDouble height Tall-boy rubber surround for an extra-long linear excursion without reducing cone surface area600W RMS long-term power handlingCopper shorting rings and cap reduce distortion due to inductance variationsDual 2 ohm, 2-layer copper voice coilsLarge, vented pole piece and under-spider ventingBlack anodised aluminium former and pole improves heat dissipation Note: All parameters derived with voice coils wired in series.
Description12' Ultimax DVC Subwoofer 2 ohm Per Coil
Impedance2x2Ω (Re 3.2Ω)
Power600Wrms
Fs26.2Hz
Sens.86.7dB
Qes0.71
Qms3.62
Qts0.59
Vas47L
ManufacturerDayton Audio
MaterialFibreglass
SeriesUltimax Series
Cms0.14mm/N
Coil63.5mmØ
Depth191mm
Impedance (Ohm)2+2 ohm
Le1.25mH
Mms270g
Power (RMS)200+ Watt
Re3.2Ω
Sd490cm²
Zn2x 2Ω
Size12'
Price Typeeach
Diam.315mmØ
Inch12
QTY1
Hole285mmØ
Prms600W
TypeSubwoofer
SKU NoWES_UM12-22_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN UM12-22
SKU WES_UM12-22_1
Brand Dayton Audio
