This is a 120mm FANS of brand Daichi.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 120mm FANS
Notes 12cm FANS DAICHI branded fans are Dual Ball Bearing Fans (Some are sleeve brearing). CERAMICA branded Fans use the newer Ceramic Bearing Technology.  CERAMICA: Ceramic materials have come a long way since their discovery last century and the development costs have fallen dramatically due to special low cost techniques. New production developments have allowed Ceramica to develop a process of injection molding of ceramic sleeves using zirconia powder together with an adhesive to produce a very strong, flexible and durable ceramic sleeve that replaces the common plastic sleeve and/or metal bearing. These new, cost effective ceramic bearings are claimed to be far superior to the conventional ball bearing and economical sleeve bearing types of fans, offering greater performance with less noise and a longer service life of an average of 300,000 Hours!.  DAICHI: These fans are of high grade with extended life using dual ball bearing systems for greater reliability with an average service life of over 50,000 hours.DC type cooling fans are essential for many different types of cooling applications, but they do have a relatively short life expectancy when used on products that are designed to operate continuously in hot or hostile environments. One of their major limitations comes from the bearing system within the fan mechanism. Generally, there are several options of bearings to consider. Sleeve type bearings, with an average life expectancy of 30,000Hr. Single ball-bearing or a double ball bearing types. The double has an extended life expectancy of 50,000 Hr. (Note that these figures will drop if the fan is exposed to high ambient temperatures, corrosive or hostile environments). Noise levels on these metal type bearing fans can also be a downfall, as it will increase in loudness as operational time gets longer. Ceramica fans offer a vast improvement to these systems with their new range of Ceramic Sleeve Bearing Fans which offer the advantages of all systems plus even longer life by using new materials technology.Dual (2) Ball-Bearing fans from Daichi offer improved relaibilty with a longer service life over single ball bearing and sleeve type fan systems.Ceramic bearings run more smoothly, are quieter than their metal ball raced equivalents and their life expectancy is increased by a factor of six! While the average life span of a ball bearing fan is 50,000 Hr a ceramic equivalent model has a 300,000 Hr life expectancy.Zirconia (or ceramic steel) offers the traditional ceramic benefits of hardness, wear resistance and corrosion resistance, without the typical characteristic ceramic property of absolute brittleness.An ideal solution has been formulated with a product using Zirconia powder that can be injection molded for an economical manufacturing process.

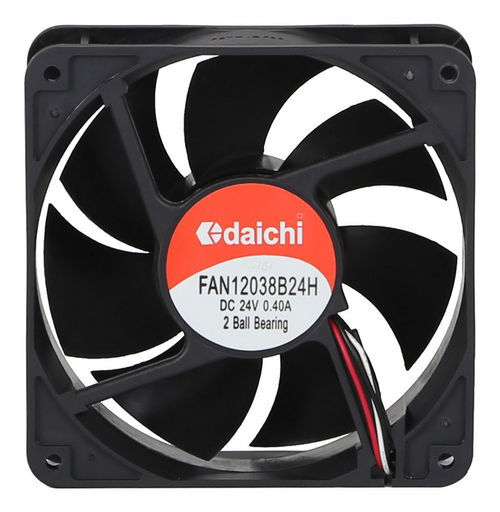

DescriptionDaichi 24V Fan with Ball Bearing - 120x120x38mm
Volts24V
Size38mm
Watt6.0W
Depth38mm
Speed2400rpm
BearingBall
Wire3x
Air102cfm
Noise43dB
ManufacturerDaichi
Dimensions120x120x38mm
SKU NoWES_FAN12038B24H_1
