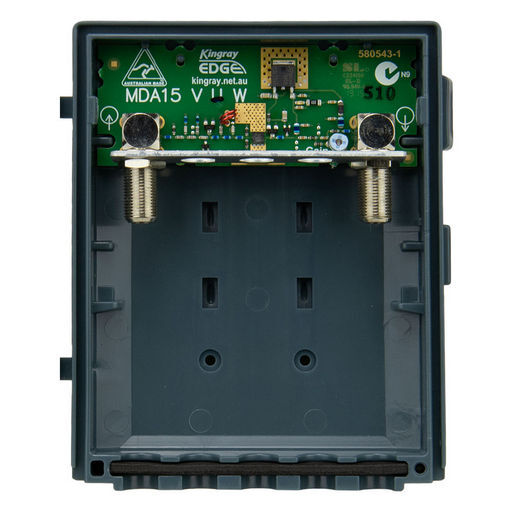

This is a 15dB UHF AMPLIFY / VHF DIPLEXED MASTHEAD of brand GME Kingray.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 15dB UHF AMPLIFY / VHF DIPLEXED MASTHEAD
Notes The MDA15 range masthead amplifiers is designed to provide a very low noise figure and an output figure comparable to other distribution amplifiers, hence the name Masthead Distribution Amplifier (MDA). The MDA15U is designed for use in the UHF frequency region (470-694MHz) only. Whether the amplifier is used as a Masthead or Distribution Amplifier, the low noise figure, capacity for multiple channels with low distortion and a high output provides a solution that is proven especially effective in problem reception areas.Australian madeLow noise figuresBuilt-In LTE FiltersRequires Power Injector Requires Power Injector 14Vdc. SPK06/F
Volts14Vdc
I/O'F' Connectors
InputSingle
VHFPass
UHF6-15dB
Output113dB@-60dBIMR
Noise<2.5dB
Gain15dB Var.
FilterLTE
Return Loss>10dB
SupplySPK06/F KPS06/F
ManufacturerGME Kingray
Type'F'
TiltNil
FM/PNil
PagerNil
Band 1Nil
BandUHF
SKU NoWES_MDA15U_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN MDA15U
SKU WES_MDA15U_1
Brand GME Kingray
