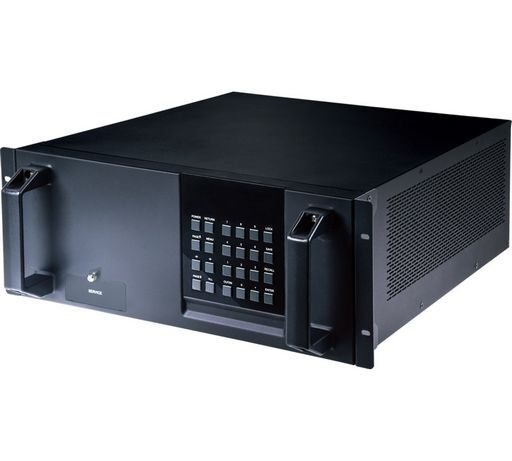

16x16 MODULAR 4K UHD+ HDMI MATRIX
CYPRESS
SKU code: WES_CPLUS-V1616_1
This is a 16x16 MODULAR 4K UHD+ HDMI MATRIX of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 16x16 MODULAR 4K UHD+ HDMI MATRIX |
| Notes | CYPRESS This unit is a Modular HDMI Matrix with 4 high-bandwidth input card slots and four high-bandwidth output card slots. Each standard card, input or output, is equipped with four HDMI ports capable of handling up to four independent 18Gbps video signals simultaneously and the backplane cross-point can handle a maximum I/O configuration of 16×16. 4K UHD video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR are fully supported. All ports support up to 7.1 channel LPCM digital audio as well as Bitstream and HD Bitstream audio formats. I/O cards using the HDMI interface (HDMI 2.0, HDCP 2.2) interface are available now and I/O cards supporting HDBaseT (with AVLC) are under development. Control is via front panel buttons with an LCD menu, WebGUI, Telnet, RS-232 or IR remote.Input and output card slots support 18Gbps (600MHz) 4K UHD with HDR signalsDVI 1.0 compliant with the use of an HDMI-DVI adapterHDCP 1.x and 2.2 compliant8 high-bandwidth card slots (4 dedicated input slots, 4 dedicated output slots) with a maximum matrix configuration of 16×161 CPU and control card slotSupports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit)Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit colorSupports 12-bit Deep Color up to 1080p@60HzSupports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamOutput cards have an integrated scaling function which supports upscale to 4K@60Hz and downscale to 1080p@60Hz if required by the connected displayAdvanced EDID Management for rapid integration of sources and displaysField updatable firmware3U rack mounted designRedundant power supplyControl via front panel buttons with LCD menu, Ethernet (Telnet & WebGUI), RS-232, and IR remote4-port HDMI input (CIN-V4HP) and 4-port HDMI output (COUT-V4HP) cards are available |
| Description | 16×16 Modular 4K UHD+ HDMI Matrix |
| 4K | Yes |
| AVLC | - |
| Cable Length | 3M (4K) |
| Chassis. | Metal |
| Controller | 1x RS-232 (D-SUB), 1x IR IN, 1×IR Blaster, 1x RJ45 (Control) |
| Bandwidth | 18Gbps |
| Dimensions | 440x429x177mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 16x HDMI |
| IR | Yes |
| Max Res. | 4K@60Hz (4:4:4) |
| Output | 16x HDMI |
| PoE | PoH |
| RS-232 | Yes |
| Size | 440x429x177mm |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-V1616_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CPLUS-V1616 |
| SKU | WES_CPLUS-V1616_1 |
| Brand | Cypress |
