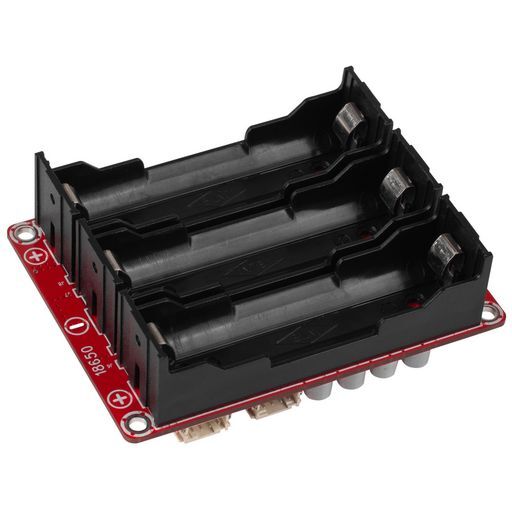

This is a 18650 X3 LITHIUM BATTERY CHARGER of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 18650 X3 LITHIUM BATTERY CHARGER
Notes 3X 18650 NOT INCLUDED Dayton Audio's LBB-3 compact battery holder board delivers high current portable power to small amplifiers, 50W amp boards, or other 12 VDC projects by combing the voltage from three 18650 Li-Ion batteries (sold separately). It's small enough to fit inside a portable speaker and has multiple 12 VDC outputs to power an amp, tone control, Bluetooth, and other preamp component boards. Enjoy the extended listing time you get from Li-Ion batteries on a single charge. 18650 Li-Ion batteries come in a variety of amperages, and to get the longest playtime from a 50W amplifier or amp board use at least 2600mAh batteries. There is no need to remove the batteries from the holder because the Dayton Audio LBB-3 has a built-in charge circuit. Just plug in a power supply and the over/under charge circuit prevents correctly installed batteries from overcharging and fully discharging, shortening their life. The LBB-3 battery board needs a 15 to 24 VDC power supply (sold separately) to start the charging process and to start its output power. This enables you to listen to music while the batteries are charging with this amazing battery holder. To view charging and battery status press the push button on the battery board, or use Dayton Audio's LLB-LED push button and LED kit to view status externally. If you remove a battery, the power supply must be plugged into the holder for the battery board to start working again when the battery or batteries are reinstalled. The polarity of the batteries must match the polarity of the battery holder to prevent damage.Works with any 15 VDC to 24 VDC 2.1 x 5.5 mm tip + power adapter (sold separately)Powers 12 VDC projects while chargingBuilt-in over/under charge protection Includes 8 12 VDC output cable with 4-conductor plug for additional devices12 VDC input and out sockets with bare wire quick release terminals Note: The Dayton Audio LBB-3 is an independent battery holder board and it's design is NOT for Dayton Audio KAB boards. Use Dayton Audio battery board KAB-BE with Dayton Audio KAB Bluetooth amp boards. Note: Standard 18650 batteries dont fit this charger. Requires BAT-KAB batteries only.
V in15-24Vdc
V out12Vdc
Size92x69x34mm
Battery3x 18650
ManufacturerDayton Audio
SKU NoWES_LBB-3_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN LBB-3
SKU WES_LBB-3_1
Brand Dayton Audio
