This is a 18AWG DOUBLE INSULATED 600V 7.5A of brand Redback.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 18AWG DOUBLE INSULATED 600V 7.5A

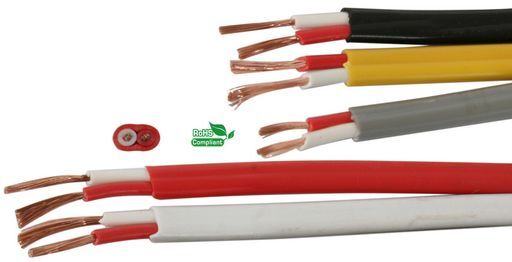

Notes 24/0.20 TWIN CORE General purpose double PVC insulated figure-8 cable suitable for speakers, security systems, fire system and other low voltage applications. Separate conductors with non-bonded sheath. Red & White coloured cores provides easy identification to avoid polarity-reversals during installation. Each conductor has 24 strands of 0.20mm diameter copper wire giving an overall conductor-size of 0.75mm² (18AWG). Available in many colours. Supplied on 100, 200, and 300 Metre strong polypropylene reels.Size: 2 by 24 strands of 0.20mmVoltage Rating: 600V AC Current Rating: 7.5 AmpsJacket: 6 x 3.5mm Conductor Area: 0.75mm²Conductor Gauge: ~18AWG Temperature Rating: 75°C
ColourRed
Length100M
ManufacturerRedback
SKU NoWES_CAB2421RD_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN CAB2421RD
SKU WES_CAB2421RD_1
Brand Redback
