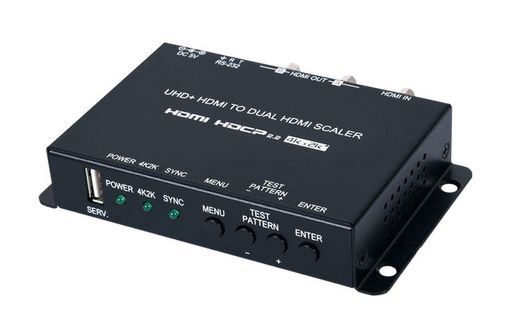

This is a 1x2 HDMI SCALER 4K60 WITH TEST PATTERNS & SIGNAL EVENT AUTOMATION - CYPRESS of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 1x2 HDMI SCALER 4K60 WITH TEST PATTERNS & SIGNAL EVENT AUTOMATION - CYPRESS
Notes This Scaler is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronised digital audio output. A friendly and simple interface design allows the user to control the unit while viewing the OSD directly on the HDMI outputs. The input signal can be output to both HDMI outputs simultaneously with a different resolution on each or the unit can generate a test pattern at a preferred video resolution for easy on-site display testing and validation. Additional functionality such as EDID and HDCP management, and basic signal event automation (via RS-232 or CEC) is also provided. This UHD Scaler is the best tool to use with your HD and UHD signals. This unit can be controlled easily by use of the front panel controls (with OSD) or by RS-232.HDMI input and output with 18Gbps (600MHz) 4K UHD with HDR supportDVI 1.0 compliant with the use of an HDMI-DVI adapterHDCP 2.2 and HDCP 1.x compliant1 HDMI input and 2 HDMI outputsSupports HDCP 2.2 to HDCP1.4 conversionHDMI signal bypass on both outputs or upscales 1080p signals to 4K on output B and downscales 4K signals to 1080p on output ASupports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit)Supports 4K HDR at 24/30Hz (YUV 4:4:4) and 50/60Hz (YUV 4:2:0) with up to 12- bit colorSupports 16-bit Deep Color up to 1080p@60HzSupports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamSupports color space conversion of 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sourcesIntegrated EDID and HDCP managementBasic signal event automation (via RS-232 or CEC)Test pattern generation at selected resolutions for on-site display testingControllable via front panel with OSD, and RS-232
Description4K60 (4:4:4) 1×2 HDMI Scaler with Test Patterns & Signal Event Automation
4KYes
Bandwidth18Gbps
Cable Length5M (4K)
Chassis.Metal
Dimensions128x83x25mm
EDIDYes
HD AudioYes
HDCPYes
Input1×HDMI
Max Res.4K@60Hz
Output2×HDMI
Size128x83x25mm
ManufacturerCypress
SKU NoWES_CPLUS-V2PEL_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN CPLUS-V2PEL
SKU WES_CPLUS-V2PEL_1
Brand Cypress
