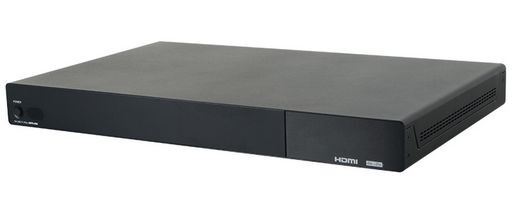

1x4 HDMI 4K30 UHD VIDEO WALL SPLITTER - CYPRESS
HDCP 2.2 COMPLIANT - EDID SELECT
SKU code: WES_CDPS-4KQ_1
This is a 1x4 HDMI 4K30 UHD VIDEO WALL SPLITTER - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1x4 HDMI 4K30 UHD VIDEO WALL SPLITTER - CYPRESS |
| Notes | HDCP 2.2 COMPLIANT - EDID SELECT The 1 by 4 HDMI Video Wall Splitter allows a single 4K2K HDMI source to be shown as a single image spanned across multiple displays (TVs or monitors) added benefit of bezel correction function for optimum picture alignment. The easy-to-use PC application gives the user complete control over the setup and control of single or multiple units either via direct or IP connection. All operation and control can also be done through Telnet and RS-232 commands. The unit supports resolutions up to WUXGA@60Hz (RB) and 1080p@60Hz, 1080p@24/25/30/50/60Hz and 4K2K@24/25/30Hz, audio formats up to 7.1CH LPCM at 192kHz sampling rate based on the source devices resolution capabilities.HDMI with 4K2K supported, HDCP and DVI compliantOutput source signal to 4 displays as a full image with adjustableBezel CorrectionInput PC resolutions support from VGA~WUXGA and HDTV from480i~1080p and 4K2K@24/25/30HzSupports different input resolutions and output resolutions selectablefrom TV wall applicationSupports AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmosand DTS-HD Master AudioSupports RS-232 and Telnet controls |
| Description | 1 by 4 HDMI 4K UHD TV Wall Splitter |
| 4K | Yes |
| AVLC | - |
| Bandwidth | 9Gbps |
| Chassis. | Metal |
| Controller | 1xRS232 |
| Dimensions | 482x274x52mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 1x HDMI |
| IR | Yes |
| Max Res. | 4K@30Hz |
| Output | 4xHDMI |
| Pass-through | 1xRS-232, 1xRJ45 (Control), 1x USB (Service) |
| Manufacturer | Cypress |
| SKU No | WES_CDPS-4KQ_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CDPS-4KQ |
| SKU | WES_CDPS-4KQ_1 |
| Brand | Cypress |
