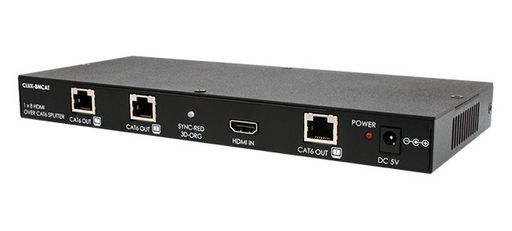

1x8 HDMI OVER SINGLE CAT6 SPLITTER TRANSMITTER 1080P - CYPRESS
SINGLE HDMI SOURCE TO 8X CAT6
SKU code: WES_CLUX-8MCAT_2
This is a 1x8 HDMI OVER SINGLE CAT6 SPLITTER TRANSMITTER 1080P - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1x8 HDMI OVER SINGLE CAT6 SPLITTER TRANSMITTER 1080P - CYPRESS |
| Notes | SINGLE HDMI SOURCE TO 8X CAT6 This 1 by 8 HDMI v1.3 to single CAT6 Splitter can distribute a single HDMI source simultaneously to eight displays when connecting with a CAT6 to HDMI receiver. Efficient and cost effective way to link your displays, distribute HDMI signal at their full strength and at up to 45M in distance between the transmitter and the receiver. Supports 3D signals with 3D LED indicator. Supports a wide range of PC and HDTV resolutions from VGA to WUXGA (1920 x 1200) and 480i to 1080p. Supports LPCM 7.1Ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissionHDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. Deep colour video up to 12 bits, 1080p@60Hz. One HDMI source to eight CAT6 output allows users to simultaneously link eight displays with eight CAT6 to HDMI receivers. Transmit a single HDMI source through eight outputs no signal loss. LPCM 7.1Ch, Dolby True HD, Dolby Digital Plus and DTS-HD.Supports a wide range of PC and HDTV resolutions from VGA to WUXGA (1920 x 1200) and 480i to 1080p. Selectable EDID from either the TV or STD mode. Deep colour setting of 8 bits or 12 bits. Supports 3D signals with an LED indicator. |
| Description | 1 by 8 HDMI Over 1x CAT6 Splitter |
| Max. | 45M (8bit) |
| Input | 1x HDMI |
| Output | 8x CAT6 |
| Interface | TX Splitter x8 |
| Compliance | HDMI V1.3 / DVI 1.0 |
| CEC | - |
| EDID | Yes |
| HDCP | Yes |
| Max Res. | 1080p |
| IR | - |
| PoE | - |
| Ethernet | - |
| 4K | - |
| RS-232 | - |
| HDMI Input | 1 |
| Page | 27 |
| Cat6/6ex1 Output | 8 |
| Extension Cables | 8 Single |
| Manufacturer | Cypress |
| Device Type | TX Splitter |
| 3D | Yes |
| HD Audio | Yes |
| SKU No | WES_CLUX-8MCAT_2 |
