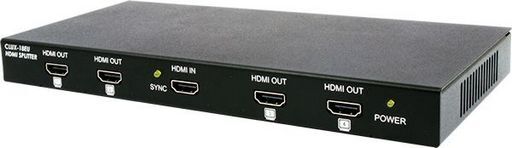

1x8 HDMI V1.3 SPLITTER 1080P 3D READY WITH SYSTEM RESET - CYPRESS
EXCELLENCE IN SIMPLICITY - FULLY AUTOMATIC & COMPLIANT -
SKU code: WES_CLUX-18EU_1
This is a 1x8 HDMI V1.3 SPLITTER 1080P 3D READY WITH SYSTEM RESET - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 1x8 HDMI V1.3 SPLITTER 1080P 3D READY WITH SYSTEM RESET - CYPRESS |
| Notes | EXCELLENCE IN SIMPLICITY - FULLY AUTOMATIC & COMPLIANT - 3D COMPATIBLE This 1x8 HDMI splitter splits the HDMI signal from a single source device to facilitate simultaneous connection to eight HDMI displays. Compatible with HDMI v1.3 which defines the ability to transfer 3D content, Deep Colour video and lossless compressed digital audio, this device also amplifies and equalises your signals to provide high performance I/O of audio and video distribution. Further, this unit allows users to cascade up to 4 layers to extend and distribute the HD 1080p in 8 bit colour signal without loss or delay. (Higher colour definitions will restrict cable lengths & cascade depths). This splitter supports PC resolution at up to 1600x1200px and HDTV resolution at 1080p.HDMI v1.3, HDCP1.1 and DVI1.0 compliant receiver.Deep colour video up to 12bits, 1080p@24/60Hz.Allows one HDMI source to simultaneously connect with up to eight HDMI displays.HDCP keysets allows each output to work independently and quickly.Transmits an HDMI source to eight outputs without any signal loss.Supports DVI source/display by using and HDMI/DVI adaptor cable.LPCM 7.1CH, Dolby®, True HD, Dolby Digital Plus and DTS-HD master audio.Supports PC and HDTV resolutions from VGA to WUGA and 480i to 1080p.HDMI cable distance testing showed that with 1080p/8 bits resolution, the input source can be 15 metres away and with 1080p/12 bits it can be 10 metres away.HDMI cable distance testing showed that with 1080p/8 bits resolution, the output source can be 15 metres away, and with 1080p/12 bits it can be 15 metres away. |
| Description | Cypress 1x8 HDMI v1.3 Splitter 1080P |
| Input | 1x HDMI |
| Output | 8x HDMI |
| Interface | HDMI |
| Compliance | V1.3 |
| 3D | Yes |
| CEC | Yes |
| EDID | Yes |
| Cascade | Yes |
| Max Res. | 1080p |
| Chassis. | Metal |
| HDCP | Yes |
| IR | - |
| PoE | - |
| Ethernet | - |
| 4K | - |
| RS-232 | - |
| Cable Length | 10-15M |
| Page | 15 |
| Manufacturer | Cypress |
| HD Audio | Yes |
| SKU No | WES_CLUX-18EU_1 |
