2 BALANCED MODE 20W TRANSDUCER
2 BALANCED MODE 20W TRANSDUCER
SKU code: WES_BMT25-4_1

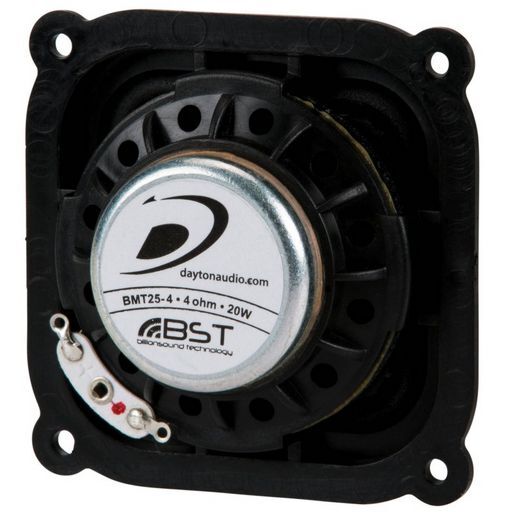

This is a 2 BALANCED MODE 20W TRANSDUCER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 2 BALANCED MODE 20W TRANSDUCER |
| Notes | The BMT25-4 2 full-range transducer from Dayton Audio produces an amazing amount of quality sound while maintaining a small form factor. Designed to move air like a traditional speaker, this driver's unique shape lends itself to modern audio applications, such as a speaker bars, docking stations, and satellite speakers, where sound is to be heard without the source being seen. Great off-axis directivity enables flexible placement options, while the wide frequency response (that extends from 150 Hz up to 15,000 Hz) delivers cost savings to engineers... no crossover components or frequency-specific drivers are required.Unique, square-shaped from for tight driver-to-driver placementExtended frequency response up to 15,000 Hz due to low a inductance motorWide off-axis dispersion for placement flexibilityPerfect for modern audio applications such as speaker bars and line arrays |
| Description | Distributed Mode Loudspeaker Transducer 20W 4 Ohm |
| Type | Transducer |
| Size | 2' |
| Power | 20W |
| Coil | 25mmØ |
| Impedance | 4Ω (Re 4.3Ω) |
| Depth | 26.5mm |
| Sens. | 82.1dB |
| Re | 4.3Ω |
| Qms | 3.83 |
| Qes | 1.5 |
| Qts | 1.1 |
| Vas | 0.005L |
| Sd | 4.64cm² |
| Cms | 0.15mm/N |
| Fs | 212Hz |
| Mms | 3.7g |
| Zn | 4Ω |
| Le | 0.09mH |
| Diam. | 67x67mm |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 2 |
| Series | BMT Series |
| QTY | 1 |
| Prms | 20W |
| Hole | 59.5x59.5mm |
| Price Type | each |
| SKU No | WES_BMT25-4_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | BMT25-4 |
| SKU | WES_BMT25-4_1 |
| Brand | Dayton Audio |
