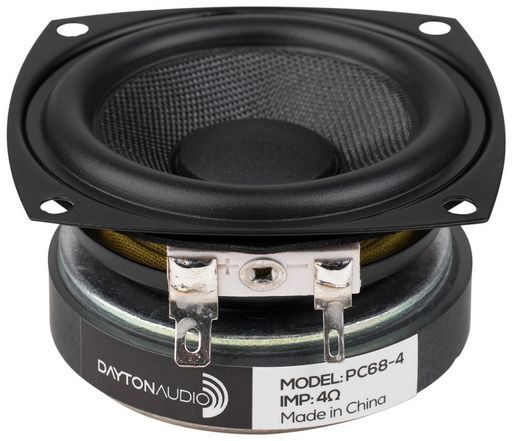

2½ FULL RANGE POLY CONE DRIVER
DAYTON AUDIO
SKU code: WES_PC68-4_1
This is a 2½ FULL RANGE POLY CONE DRIVER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 2½ FULL RANGE POLY CONE DRIVER |
| Notes | DAYTON AUDIO The Dayton Audio PC68-4 and PC68-8 2-1/2 full-range driver features a poly damped woven glass fiber cone, rubber surround, and high energy motor. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio. These speaker drivers will deliver high fidelity and low distortion from compact applications for an amazing value.Poly damped woven glass fibre cone controls cone break-up and provides a smooth roll-offHigh energy ferrite magnet increases BL for higher efficiency and increased outputRubber surround improves cone linearity and transientsSmooth response with true full-range reproduction |
| Description | 2½' Poly Cone Full-Range Driver 4 Ohm |
| Cms | 1.07mm/N |
| Coil | 19mmØ |
| Depth | 37mm |
| Diam. | 68mmØ |
| Fs | 117.1Hz |
| Impedance | 4Ω (Re 3.8Ω) |
| Impedance (Ohm) | 4 ohm |
| Inch | 2.5 |
| Le | 0.29mH |
| Manufacturer | Dayton Audio |
| Mms | 1.7g |
| Power | 20W |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Qes | 0.87 |
| Qms | 2.49 |
| Qts | 0.65 |
| QTY | 1 |
| Re | 3.8Ω |
| Sd | 21.2cm² |
| Sens. | 86.1dB |
| Size | 2.5' |
| Type | Full Range |
| Vas | 0.7L |
| Zn | 4Ω |
| Hole | 64mmØ |
| Prms | 20W |
| Series | Full-Range |
| SKU No | WES_PC68-4_1 |
