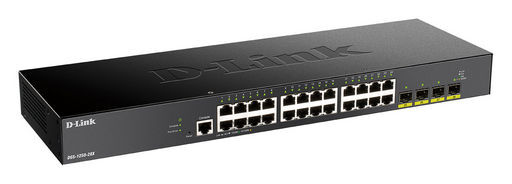

28-PORT GIGABIT SMART MANAGED SWITCH WITH 24 RJ45 AND 4 SFP+ 10G PORTS
28-PORT GIGABIT SMART MANAGED SWITCH WITH 24 RJ45 AND 4
SKU code: WES_DGS-1250-28X_1
This is a 28-PORT GIGABIT SMART MANAGED SWITCH WITH 24 RJ45 AND 4 SFP+ 10G PORTS of brand D-Link.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 28-PORT GIGABIT SMART MANAGED SWITCH WITH 24 RJ45 AND 4 SFP+ 10G PORTS |
| Notes | D-Link's DGS-1250-28X consists of 24 10/100/1000 Mbps ports and comes in a rackmountable 440mm wide enclosure. Switch management can be performed through the D-Link Network Assistant (DNA) utility or multilingual Web UI. It includes include 4 x high-speed 10G SFP+ uplink ports enabling easy expansion of your network. The DGS-1250-28X comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The DGS-1250-28X also supports advanced features such as static routing, which allow network administrators to divide the network into VLANs, increasing network efficiency. Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down switching loops. The cable diagnostics feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing for swift diagnostics and maintenance. The DGS-1250-28X supports Auto Voice VLAN and Surveillance Mode, which allows voice and video traffic to be automatically identified and handled differently than regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, adding a layer of isolation and allowing Quality of Service (QoS) to be applied. Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network. D-Link’s innovative Safeguard Engine helps to protect the switches against traffic flooding caused by malicious attacks. The DGS-1250-28X supports 802.1X port-based authentication, allowing clients to be authenticated through external RADIUS servers. The Access Control List (ACL) feature helps to enhance network security and helps to protect the internal IT network. The DGS-1250-28X also features Address Resolution Protocol (ARP) spoofing prevention, which helps to provide protection from attacks on the network that could allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To help prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain fake ARP messages. The DHCP server screening filters DHCP replies on unauthorized ports to prevent them from being assigned an IP address.24 x 10/100/1000BASE-T ports4 x 10G SFP+ ports for choosing the most suitable media type for your requirementLite L3 Static Routing for increased network efficiencyAdvanced security features such as Access Control List, IMPB, 802.1X Authentication to enhance network security and protect the internet IT networkDual Image & Configuration for reduced downtimeSupports STP/RSTP/MSTP to maintain the quality of networkFull CLI for for easy managementQoS Enablement for performance improvement of critical network traffic11 Web Languages for management flexiblity |
| Description | 28-Port Gigabit Smart Managed Switch with 24 RJ45 and 4 SFP+ 10G Ports |
| Dimensions | 440x140x44mm |
| Manufacturer | D-Link |
| Mounting | Rack mount |
| OEM | DGS-1250-28X |
| PoE | No |
| RJ45 | 24x 1000M |
| Series | Smart Managed |
| SFP | 4x SFP+ (10G) |
| Size | 440x140x44mm |
| Speed | Gigabit |
| Switching Capacity | 128Gbps |
| Network Management | Yes |
| SKU No | WES_DGS-1250-28X_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | DGS-1250-28X |
| SKU | WES_DGS-1250-28X_1 |
| Brand | D-Link |
