This is a replacement 2Watt CCW Condensor Fan Motor. It is suitable for replacing spare parts with RF601 part number for Kelvinator Fridges and Freezers.

SALIN is a leading Australian appliance spare parts distributor specializing in KELVINATOR applicances. We take pride in our ability to bring hard-to-find KELVINATOR spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our KELVINATOR range is genuine.

TECHNICAL SHEET
Part NoRF601

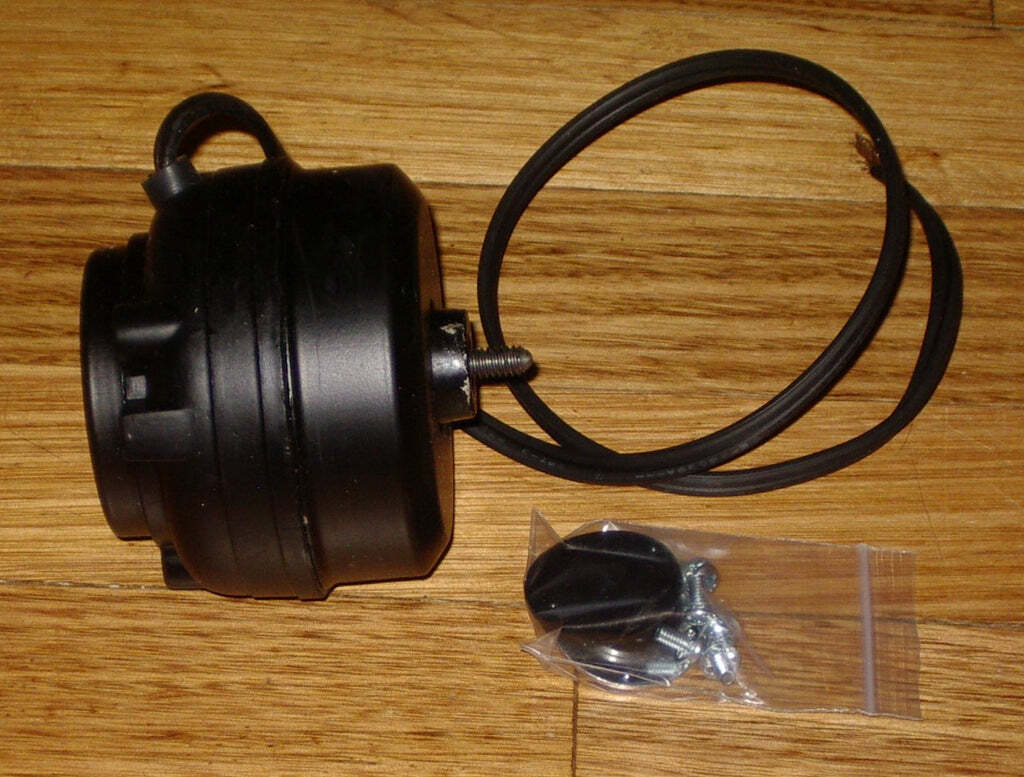

NotesGE Anticlockwise 2Watt Condensor Fan Motor to suit Westinghouse & Kelvinator No Frost Fridges.Part no. RF601, Replaces Westinghouse Part No. 1434629, RFN003.Small fan motor suitable for many refrigerators, freezers and commercial refrigeration applications.Fits Electrolux RESM6477SA, ESM6470WA, ESM6470SA, ESM6600SA, ESM6600WA, ESM6607SA, Kelvinator N620F, N640F, N640G*02, N640G, N660G*02, N660G, Westinghouse RS663T*01, RS643T, RS663T, RS643V, RS643T*01, RS645V, RS645T, RS662T, RS645T*01, RS662T*01, RS625S, RS623S, RS642S, RS643S, RS633T, RS662V, RS663V.Suitable for condensor cooling or compressor cooling.230Volts AC, 0.12Amp, 2Watts, 50/60Hz. 1550 RPM, Direction CCW, Thermally protected.Fitted with 600mm connecting wires with bare ends.Shaft length 12mm, shaft diameter 6.1mm O-shape screw thread, total depth 87mm from tip of shaft to back of motor, thickness of motor from front to back, not including shaft is 67.5mm, diameter 88mm, mounting bolt spacing 15mm X 28mm. Fan blade (not included) attaches with a small round clamp, rubber washer and nut, all included and has one central hole and 4 locating holes
Title2Watt CCW Condensor Fan Motor For Kelvinator RS663V Fridges and Freezers
CategoryAppliance Spares > Kitchen Appliances > Fridges & Freezers
Replacement Item2Watt CCW Condensor Fan Motor
Compatible Brands✔ Westinghouse
✔ GE
✔ Kelvinator
Replacing Parts✔ 1434629
✔ RFN003
Suitable Models✔  Kelvinator RESM6477SA
✔  Kelvinator ESM6470WA
✔  Kelvinator ESM6470SA
✔  Kelvinator ESM6600SA
✔  Kelvinator ESM6600WA
✔  Kelvinator ESM6607SA
✔  Kelvinator N620F
✔  Kelvinator N640F
✔  Kelvinator N640G*02
✔  Kelvinator N640G
✔  Kelvinator N660G*02
✔  Kelvinator N660G
✔  Kelvinator RS663T*01
✔  Kelvinator RS643T
✔  Kelvinator RS663T
✔  Kelvinator RS643V
✔  Kelvinator RS643T*01
✔  Kelvinator RS645V
✔  Kelvinator RS645T
✔  Kelvinator RS662T
✔  Kelvinator RS645T*01
✔  Kelvinator RS662T*01
✔  Kelvinator RS625S
✔  Kelvinator RS623S
✔  Kelvinator RS642S
✔  Kelvinator RS643S
✔  Kelvinator RS633T
✔  Kelvinator RS662V
✔  Kelvinator RS663V
SKU NumberFIT_0004656_003_00029
