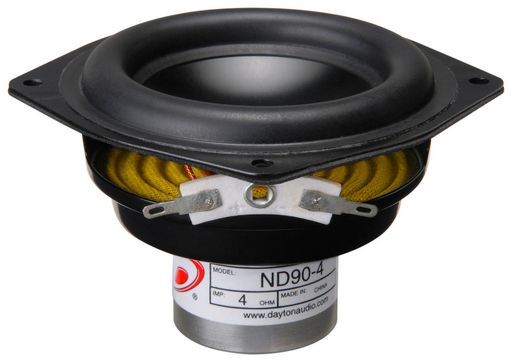

3½” ALUMINIUM CONE FULL RANGE DRIVER
NEODYMIUM MAGNET
SKU code: WES_ND90-4_2
This is a 3½” ALUMINIUM CONE FULL RANGE DRIVER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 3½” ALUMINIUM CONE FULL RANGE DRIVER |
| Notes | NEODYMIUM MAGNET The Dayton Audio compact aluminium cone full range drivers feature an efficient, low-distortion Neo-Balanced motor combined with a rigid yet lightweight aluminium diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.Direct replacement for Aura NS3Rubber-edged anodised aluminium alloy coneLarge excursion capability—4 mm Xmax, 20 mm peakSelf-shielded Neo-Balanced motor structureFull-range 80 Hz to 15 kHz performance3/4 4-layer underhung voice coil with polyimide former |
| Description | 3½ ALUMINIUM CONE Full Range DRIVER |
| Type | Full Range |
| Power | 20W |
| Sens. | 85.7dB |
| Re | 3.6Ω |
| Qms | 5.1 |
| Qes | 0.72 |
| Qts | 0.63 |
| Vas | 1.06L |
| Fs | 90.2Hz |
| Zn | 4Ω |
| Manufacturer | Dayton Audio |
| Impedance | 4Ω (Re 3.6Ω) |
| Impedance (Ohm) | 4 ohm |
| Hole | 85mmØ |
| Depth | 61mm |
| Diam. | 103.5mmØ |
| Le | 0.62mH |
| Cms | 0.73mm/N |
| Power (RMS) | 0-50 Watt |
| QTY | 1 |
| Sd | 12.5cm² |
| Coil | 19mmØ |
| Prms | 20W |
| Inch | 3.5 |
| Size | 3.5' |
| Mms | 4.3g |
| Price Type | each |
| Series | ND Series |
| SKU No | WES_ND90-4_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | ND90-4 |
| SKU | WES_ND90-4_2 |
| Brand | Dayton Audio |
