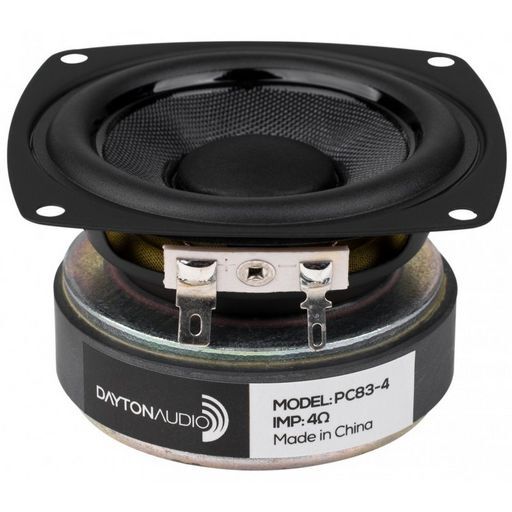

3 FULL RANGE POLY CONE DRIVER - DAYTON AUDIO
SMOOTH RESPONSE WITH TRUE FULL-RANGE REPRODUCTION
SKU code: WES_PC83-4_1
This is a 3 FULL RANGE POLY CONE DRIVER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 3 FULL RANGE POLY CONE DRIVER - DAYTON AUDIO |
| Notes | SMOOTH RESPONSE WITH TRUE FULL-RANGE REPRODUCTION Dayton Audio's PC83 3 full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.The Dayton Audio PC83 3 full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC83 will deliver high fidelity and low distortion from compact applications for an amazing value.Smooth response with true full-range reproduction for simple speaker designs Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-offCopper cap keeps inductance under control and extends high frequency response High energy ferrite magnet increases BL for higher efficiency and more outputGreat for MTM bookshelves, car audio, or line arrays |
| Description | 3' FULL-RANGE POLY CONE DRIVER - DAYTON AUDIO |
| Type | Full Range |
| Size | 3' |
| Price Type | each |
| Power | 30W |
| Coil | 25mmØ |
| Impedance | 4Ω (Re 3.9Ω) |
| Depth | 50mm |
| Sens. | 86.8dB |
| Re | 3.9Ω |
| Qms | 3.41 |
| Qes | 0.64 |
| Qts | 0.54 |
| Vas | 2.0L |
| Sd | 30.2cm² |
| Cms | 1.47 mm/N |
| Fs | 80Hz |
| Mms | 2.7g 2.7g |
| Zn | 4Ω |
| Le | 0.38mH |
| Diam. | 83mmØ |
| Manufacturer | Dayton Audio |
| Prms | 30W |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 3 |
| Hole | 78mmØ |
| QTY | 1 |
| Series | Full Range |
| SKU No | WES_PC83-4_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | PC83-4 |
| SKU | WES_PC83-4_1 |
| Brand | Dayton Audio |
