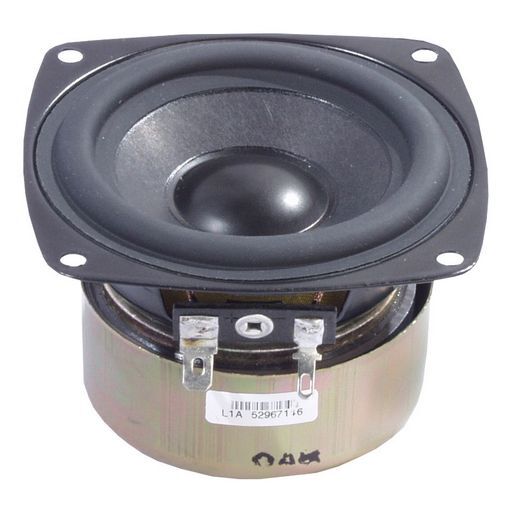

This is a 3 HF/S MID-WOOFER - DAICHI of brand Daichi.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 3 HF/S MID-WOOFER - DAICHI
Notes Paper pulp cone full range. Large exertion design. Rubber surround. All black. Steel stamped frame square. Magnetically shielded. Wide range 129Hz - 10KHz+High performance and beautiful sounding drivers from Daichi. Sturdy build quality in a compact package for today’s demanding audio requirements. Excellent solution for repair or design of high grade, yet space efficient audio with home theatre or music in compact installations.STAMPED STEEL FRAMEPAPER PULP DOPED CONERUBBER ROLL SURROUNDMAGNETICALLY SHIELDED*ADVANCED ACOUSTICS
Description3' HF/S MID-WOOFER - DAICHI
Size3'
Price Typeeach
Power8Wrms/15Wmax
Freq.129Hz - 10KHz
QTY1
Impedance8Ω (Re 6.4Ω)
Mag.64mmØ
Sens.88dB
Re6.4Ω
Fo129Hz
Qms-
Qes-
Qts-
Vas-
R8Ω (6.4Ω dc)
Pnom8 Watts
Pmax15W
SPL88dB
Fs129Hz
ManufacturerDaichi
Dimensions83mm²
Impedance (Ohm)8 ohm
Power (RMS)0-50 Watt
Inch3
Depth48mm
Hole75mmØ
Diam.80mmØ
Prms8W
Zn
Mount92mm
Brand.Daichi
SeriesHiFi
MaterialsPaper Dope
TypeWide Range
SKU NoWES_HFS76-15-8_1
