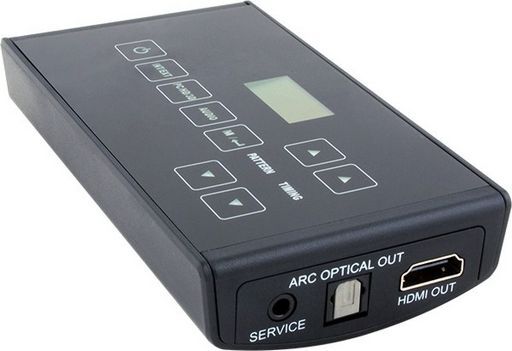

This is a 3D MINI HDMI ANALYZER of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 3D MINI HDMI ANALYZER
Notes HDMI SOURCE ANALYZER The Mini HDMI™ 3D Analyzer is the perfect hand-held tool for checking both source (Blu-ray or DVD players) and display devices (TV or monitors). With touch button controls and built-in OLED display, the unit can report the status and information of both the input and output devices connected to it via HDMI. The Mini Analyzer can be used to analyze the input source device info-frame and output sink device EDID. It also has a built-in pattern generator that can be used to test the capabilities of the display device including 3D and resolution/timing support.Supports timings including SD, HD up to 1080p, PC up to WUXGA and 3DProvides 25 timings, 6 patterns and 1 pattern for 3D timingDeep Color support up to 12-bit, 1080p@60 HzSupports input signal bypass, digital video formats in 'Deep Color' Mode up to 36-bit (12-bit/color) and new lossless compressed digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)Supports internal pattern audio LPCM 2CH 48/96/192 kHz, LPCM 5.1CH 48/96 kHz, LPCM 7.1CH 48/96 kHzAnalyze the input source info-frame and output sink EDID informationTouch button control functionOLED display shows Input/Output timing informationSupports ARC (Audio Return Channel) following HDMI specificationsSupports Deep Color 8/10/12-bit outputSupports HDCP repeater function and complaint with HDCPSupports CEC bypass
OutputHDMI 3D
Page66
ManufacturerCypress
SKU NoWES_CH-A1_3



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN CH-A1
SKU WES_CH-A1_3
Brand Cypress
