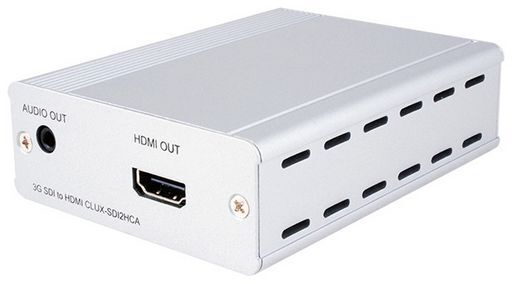

3G-SDI TO HDMI CONVERTER WITH AUDIO - CYPRESS
SHOWS SDI SOURCE ON HDMI DISPLAY
SKU code: WES_CLUX-SDI2HCA_1
This is a 3G-SDI TO HDMI CONVERTER WITH AUDIO - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 3G-SDI TO HDMI CONVERTER WITH AUDIO - CYPRESS |
| Notes | SHOWS SDI SOURCE ON HDMI DISPLAY The CLUX-SDI2HCA allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. In addition, the external audio output allows the user to send the audio signal originally embedded in the SDI input to an amplifier or active speakers.Shows SDI source on HDMI displayAuto-detects SD-SDI, HD-SDI and 3G-SDI input signalsSupports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mb/s:- 3G-SDI supports SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s- HD-SDI supports SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s- SD-SDI supports SMPTE 259M-C@270Mbit/sConverts SDI format to HDMI:- 3G-SDI (SMPTE 424M/425M-A) to 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080PsF@23.98/24/25/29.97/30Hz- HD-SDI (SMPTE 292M) to 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz- SD-SDI (SMPTE 259M-C) to 480i/576iSupports SDI input distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI) Note: This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted. |
| Description | SDI to HDMI Converter with Audio |
| Input | 1x SDI |
| Output | 1x HDMI |
| Input Video Formats | SD/HD/3G-SDI |
| Output Video Formats | Digital RGB/YUV |
| Supported TV Resolutions | 480-1080p |
| Supported PC Resolutions | VGA-WUXGA (RB) |
| Manufacturer | Cypress |
| Brand. | Cypress |
| SKU No | WES_CLUX-SDI2HCA_1 |
