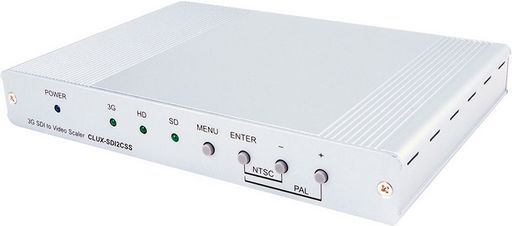

.3G-SDI TO SV/CV SCALER
3G-SDI TO SV/CV SCALER
SKU code: WES_CLUX-SDI2CSS_1
This is a .3G-SDI TO SV/CV SCALER of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .3G-SDI TO SV/CV SCALER |
| Notes | 3G-SDI TO SV/CV SCALER The CLUX-SDI2CSS allows SD, HD and 3G-SDI signals to be shown on SV/CV display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on PC/HD display. Furthermore, thanks to coaxial (S/PDIF) and L/R audio outputs users can output audio in both digital and analogue formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on SDI, Composite Video and S-Video displays.Broadcasts SDI video signal to SV/CV displayAuto-detects SD-SDI, HD-SDI and 3G-SDI input signalsSupports simultaneous S-Video/Composite Video and loop-through SDI output signalsEqualized and re-clocked loop outputOperation at bitrates of 270Mbps, 1.485Gbps, 1.485/1.001Gbps, 2.970Gbps and 2.970/1.001GbpsSupports SDI standards of SD-SDI/SMPTE, HD-SDI/SMPTE and 3G-SDI/SMPTESD-SDI/SMPTE 259M-C@270MbpsHD-SDI/SMPTE 292M@1.485Gbps and 1.485/1.001Gbps3G-SDI/SMPTE 424M and SMPTE 425M (Level A and Level B)@2.970Gbps and 2.970/1.001GbpsScales SDI signal to the following SV/CV signal: NTSC or PALAlternative digital Coaxial (S/PDIF) and analog 2CH audio outputsSupports SDI input distance up to 300m (SD-SDI), 200m (HD-SDI) or 100m (3G-SDI) |
| Description | SDI to CV/SV Scaler |
| Input | 1x SDI |
| Output | 1x SV, 1xCV |
| Upscaled TV Res. | - |
| Upscaled PC Res. | - |
| Downscaled TV Res. | NTSC/PAL |
| Downscaled PC Res. | - |
| Frame Rate Conversion | 50/60 |
| Manufacturer | Cypress |
| Brand. | Cypress |
| SKU No | WES_CLUX-SDI2CSS_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CLUX-SDI2CSS |
| SKU | WES_CLUX-SDI2CSS_1 |
| Brand | Cypress |
