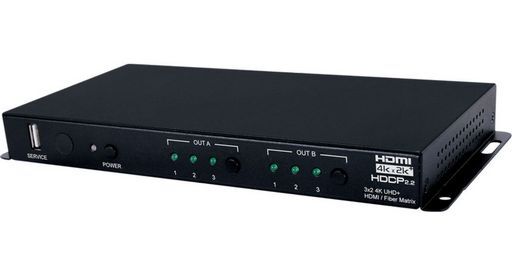

3x2 HDMI & FIBRE MATRIX 4K60 - CYPRESS
RS232 ETHERNET WEB GUI IR REMOTE CONTROL
SKU code: WES_CPLUS-32FX_1
This is a 3x2 HDMI & FIBRE MATRIX 4K60 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 3x2 HDMI & FIBRE MATRIX 4K60 - CYPRESS |
| Notes | RS232 ETHERNET WEB GUI IR REMOTE CONTROL This Matrix Transceiver allows customer to route up to three HDMI input signals (two 18Gbps HDMI and one 10.2Gbps HDMI over optical fibre) to any of two HDMI outputs (one 18Gbps HDMI and one 10.2Gbps optical fibre). The optical fibre input and output both support transmission distances up to 300 metres and use paired LC connectors.This unit supports resolutions up to 4K@60Hz (4:4:4, 8-bit), 16-bit Deep Colour up to 1080p@60Hz, HDR (High Dynamic Range), HD audio formats and other features defined by the HDMI 2.0 specification. HDMI sources with bandwidth higher than 10.2Gbps are automatically chroma and/or bit-depth subsampled for transmission over the fibre output. Six pre-defined internal EDIDs and two external EDID selections are available for EDID management. The unit provides intuitive front panel controls as well as RS-232, Telnet, WebGUI and IR remote control options.2 HDMI (18Gbps) and 1 HDMI over fiber (10.2Gbps, LC pair, multi-mode) inputs1 HDMI (18Gbps) and 1 HDMI over fiber (10.2Gbps, LC pair, multi-mode) outputsHDMI sources with bandwidth higher than 10.2Gbps are automatically chroma and/or bit-depth subsampled for transmission over the fiber outputsThe optical fiber input and output with LC type connector both support transmission distances up to 300 meters.3×2 matrix routing between all inputs and outputsHDMI with 3D & 4K@60Hz with HDR supportDVI 1.0 compliant with the use of an HDMI-DVI adapterHDCP 2.2 and 1.x compliantSupports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)Supports 16-bit Deep Color up to 1080p@60HzSupports pass-through of audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamComprehensive EDID management support including 6 pre-defined internal EDIDs and 2 external EDIDsSupports control via front panel, WebGUI, Telnet, RS-232, and IR remote |
| Description | 4K HDR HDMI/Fiber Transceiver with IR & RS-232 Control |
| 4K | Yes |
| AVLC | Yes |
| Bandwidth | HDMI: 18Gbps, Fibre: 10.2Gbps |
| Cable Length | HDMI: 3M(4K), Fibre: 300M @ 4K |
| Chassis. | Metal |
| Controller | 1xRJ45(control), 1x RS-232, 1x IR Extender |
| Dimensions | 240x104x43mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 2x HDMI, 1x Fibre(LC) |
| IR | Yes |
| Max Res. | 4K@60Hz (4:4:4) |
| Output | 1x HDMI, 1x Fibre(LC) |
| RS-232 | Yes |
| Size | 240x104x43mm |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-32FX_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CPLUS-32FX |
| SKU | WES_CPLUS-32FX_1 |
| Brand | Cypress |
