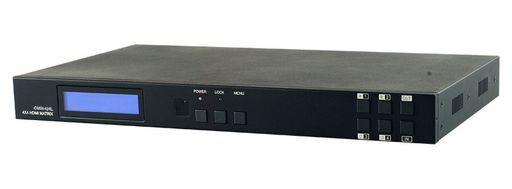

4×4 HDMI OVER HDBaseT MATRIX 1080P - CYPRESS
HDBaseT Lite(L) UP TO 60M (NO PoC)
SKU code: WES_CMSI-424L_1
This is a 4×4 HDMI OVER HDBaseT MATRIX 1080P - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4×4 HDMI OVER HDBaseT MATRIX 1080P - CYPRESS |
| Notes | HDBaseT Lite(L) UP TO 60M (NO PoC) The 4 by 4 HDMI Matrix over CAT5e/6/7 with two additional simultaneous HDMI outputs supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multichannel digital audio and control via IR, RS-232 or Web GUI/Telnet IP from four high definition sources to four HDBaseT outputs over a single CAT5e/6/7 cable (up to 60m) for each output. Output A and C have additional mirrored HDMI outputs. It supports high resolution digital audio formats such as LPCM 7.1 CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D.HDMI, HDCP1.1 and DVI compliantSupports HDMI 3D featuresSupports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settingsSupports distances up to 60 meters through CAT6/7 cablesSupports 3D signal display dependent upon the output display's EDID settingsSupports simultaneous HDMI and CAT 5e/6/7 display on outputs A and CSupports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolutionSupports bi-directional IR from input and output locationsSupports RS-232, remote control, on-panel control and IP Control (Telnet or WebGUI)1U size designSupports external and internal EDID settingsSupports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission Compatible receivers: CH-506RXL, CH-513RXL, CH-514RXL. |
| 3D | Yes |
| 4K | - |
| Cable Length | 100M |
| Ethernet | - |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 4x HDMI |
| IR | Yes |
| IR Extension | No |
| Output | 4x CAT5e/6/7, 2x HDMI |
| PoE | - |
| RS-232 | Yes |
| RS232 Extension | Yes |
| Max Res. | 1080p |
| Compatible with | CH-506RXL, CH-513RXL, CH-514RXL |
| Manufacturer | Cypress |
| SKU No | WES_CMSI-424L_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CMSI-424L |
| SKU | WES_CMSI-424L_1 |
| Brand | Cypress |
