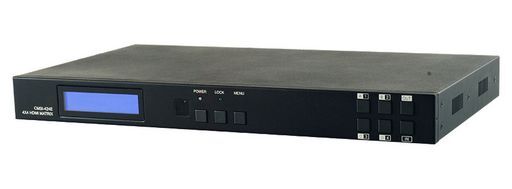

4×4 HDMI OVER HDBaseT MATRIX 1080P WITH LAN SERVING - CYPRESS
HDBaseT EXTENDED CAT5/6 UP TO 100M WITH PoC AND LAN SERV
SKU code: WES_CMSI-424E_1
This is a 4×4 HDMI OVER HDBaseT MATRIX 1080P WITH LAN SERVING - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4×4 HDMI OVER HDBaseT MATRIX 1080P WITH LAN SERVING - CYPRESS |
| Notes | HDBaseT EXTENDED CAT5/6 UP TO 100M WITH PoC AND LAN SERVING The HDBaseT™ 4 by 4 HDMI Matrix over CAT5e/6/7 with two additional simultaneous HDMI outputs supports the transmission of video (resolutions up to 1080p Full HD and 1920×1200@60Hz), multi-channel digital audio and control via IR, RS-232 or WebGUI/Telnet IP from four high definition sources to four HDBaseT outputs over a single CAT5e/6/7 cable (up to 100m) for each output. Output A and C have additional mirrored HDMI outputs. It supports high resolution digital audio formats such as LPCM 7.1 CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3DTV and 3D source. Power over Ethernet (PoE) support means that compatible receivers do not need their own separate power supplies, allowing for greater flexibility in installations and the LAN serving function allows devices such as Smart TVs to be connected to the network/internet.HDMI, HDCP1.1 and DVI compliant Supports HDMI 3D and 4Kx2K features VGA ~ WUXGA and 480i~1080p by output display’s EDID settings Supports extension up to 100 or 60 metres through CAT5e/6/7 Simultaneous HDMI output display on A and C CAT5e/6/7 output CMSI-424E has 5Play™ convergenceSupports PoE (Power over Ethernet) on compatible receivers only Supports HDMI input up to 15M with 8bits or 10M with 12bits Supports IR in/out from input and output locations Supports RS-232 (include Telnet), remote control and front panel1U size design LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Compatible PoE receivers: CH-501RX, CH-506RX, CH-507RX, CH-1109RXC, etc. |
| Input | 4x HDMI |
| Output | 4x CAT5e/6/7, 2x HDMI |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| PoE | Yes |
| Ethernet | Yes |
| Extender Cable | CAT5e/6/7 |
| HD Audio | Yes |
| 4K | - |
| RS-232 | Yes |
| IR | Yes |
| Max Res. | 1080p |
| Compatible with | CH-501RX, CH-506RX, CH-507RX, CH-1109RXC |
| Manufacturer | Cypress |
| Cable Length | 100M |
| SKU No | WES_CMSI-424E_1 |
