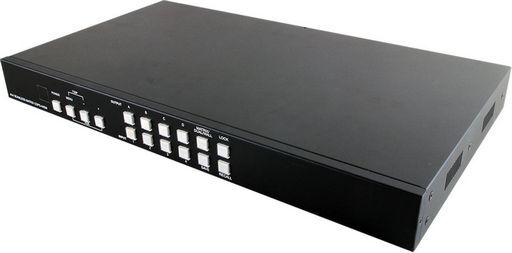

4×4 HDMI QUAD MATRIX ADVANCED 1080P - CYPRESS
MATRIX, DUAL POP/ PIP, QUAD AND TV WALL
SKU code: WES_CDPS-44SM_1
This is a 4×4 HDMI QUAD MATRIX ADVANCED 1080P - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4×4 HDMI QUAD MATRIX ADVANCED 1080P - CYPRESS |
| Notes | MATRIX, DUAL POP/ PIP, QUAD AND TV WALL The 4 by 4 HDMI Seamless Matrix Switcher allows the signal from 4 different input sources to be freely selected and arranged on 4 displays (TV or monitor), providing three output modes (Matrix, Dual and TV Wall) for various applications. Matrix mode routes the source signals to output displays as regular matrix does, Dual mode allows 2 sets of 2 selected sources to show on designate output displays with POP method and TV Wall mode extends a selected source to display on all 4 output displays as one. The device supports video timings up to WUXGA@60RB and 1080p@60Hz, audio format up to 7.1CH LPCM at 192 kHz sampling rate based on input source EDID. All functions can be controlled through IR, remote control, Telnet, RS-232 or front panel buttons.HDMI, HDCP1.1 and DVI compliantSupports Deep Colour 8/10/12-bitSeamless switching of HDMI sourcesSupports three different display modes: Matrix, Dual and Video WallIn Matrix Mode: Can seamlessly switch between and output from any 4 sources to any 4 displays, as per a normal matrix switchIn Dual Mode: Can display a POP (Picture-out-of-Picture) image combined from 2 sources to be presented on the HDMI output ports (Dual A and Dual B)In Video Wall Mode: Can split a single source to 4 displays e.g a 2 by 2 Video wall as a full image with adjustable Bezel CorrectionSupports control via On-screen Display (OSD), RS-232, Telnet (IP), IR Remote control and on-panel controlsSupports Input resolutions of VGA~WUXGA and 480i~1080pSupports Output resolutions of 480p~1080pSupports different input resolution and output resolution selectable from the OSD menu. The default setting for the output resolution is 720p@60Hz/2CH LPCMSupports High definition Audio formats: LPCM 2CH/6CH/8CH, Dolby® Digital, DTS, Dolby® Digital Plus, Dolby® TrueHD and DTS-HD Master Audio |
| Input | 4x HDMI |
| Output | 4x HDMI |
| 3D | - |
| CEC | - |
| EDID | Yes |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | - |
| ARC | - |
| HEC | - |
| Deep Colour | Yes |
| Max Res. | WUXGA/1080p |
| Manufacturer | Cypress |
| Brand. | Cypress |
| Interface | HDMI |
| SKU No | WES_CDPS-44SM_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CDPS-44SM |
| SKU | WES_CDPS-44SM_1 |
| Brand | Cypress |
