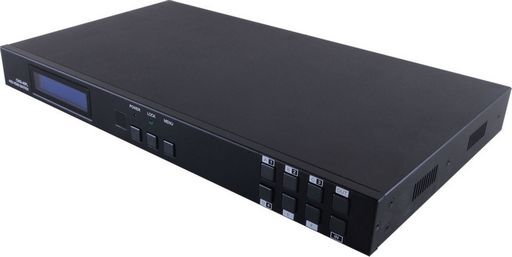

4×6 HDMI OVER HDMI AND CAT5E/6/7 MATRIX WITH 24V PoC
4×6 HDMI OVER HDMI AND CAT5E/6/7 MATRIX WITH 24V PoC
SKU code: WES_CMSI-46PL_1
This is a 4×6 HDMI OVER HDMI AND CAT5E/6/7 MATRIX WITH 24V PoC of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4×6 HDMI OVER HDMI AND CAT5E/6/7 MATRIX WITH 24V PoC |
| Notes | The CMSI-46PL is a 4 x 6 Matrix suited for HDMI signal. The matrix includes 4 HDMI inputs, 2 local HDMI and 4 CAT5e/6/7 outputs. The CAT5e/6/7 outputs are based on HDBaseT™ technology and it allows the transmission of HDMI, bidirectional IR, RS-232 and PoE over 60m. The matrix can be managed through its front-panel buttons, IR remote control, RS-232, Telnet and IP (GUI) Control, with all information including system status presented on its LCM display.Supports PC resolutions of VGA to WUXGA and HDTV resolutions of 480i to 1080p dependent upon the output display’s resolution capabilitiesSupports distances up to 70 metres through CAT6/7 cables and 70m for CAT5e cablesSupports HDMI 3D features for compatible sources and displaysSupports bi-directional IR pass-through from the source and display locationsSupports selection of Standard (Fixed) or TV (Downstream) EDID settingsSupports transmission of high-definition audio: LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master AudioSupports Power over Cable (PoC) to compatible HDBaseT receiver units |
| Input | 4x HDMI |
| Output | 4x CAT5e/6/7, 2x HDMI |
| IR | Yes |
| Cable Length | 60M |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | - |
| HD Audio | Yes |
| 4K | - |
| RS-232 | Yes |
| Manufacturer | Cypress |
| CEC | - |
| EDID | - |
| Brand. | Cypress |
| SKU No | WES_CMSI-46PL_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CMSI-46PL |
| SKU | WES_CMSI-46PL_1 |
| Brand | Cypress |
