4 COAXIAL DRIVER WITH 3/4 SILK - DAYTON AUDIO
DAYTON AUDIO
SKU code: WES_CX120-8_1

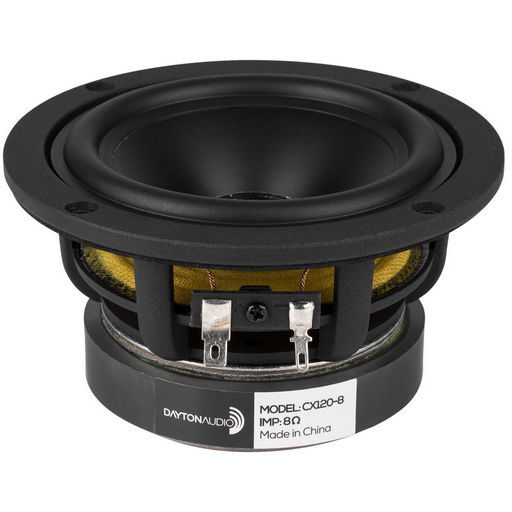

This is a 4 COAXIAL DRIVER WITH 3/4 SILK - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4 COAXIAL DRIVER WITH 3/4 SILK - DAYTON AUDIO |
| Notes | DAYTON AUDIO The Dayton Audio CX120-8 is a full-range coaxial loudspeaker providing high quality sound in a very compact format featuring a 4 curved linear poly cone woofer mated with a 3/4 silk dome tweeter. The poly cone woofer provides a good balance between stiffness, low mass and damping making for a very natural sounding driver with a smooth frequency response. The silk dome tweeter provides detailed and clear high frequencies with minimal distortion. In addition, the optimiSed tweeter placement and flaring reduces the phase issues with the woofer that is commonplace with even the BIG brand coaxes. Designed for use as a full-range in a small bookshelf speaker, an extended range (i.e. midrange/tweeter) driver in a 3-way system, or even car audio systems.Full-range with accurate bass and extended high frequency responseCoaxial mounted 3/4 silk dome tweeterOpen cast frame for improved air flow and minimal power compression4 curvilinear poly cone woofer with rubber half roll surround |
| Description | CX120-8 4' Coaxial Driver with 3/4' Silk Dome Tweeter 8 Ohm |
| Manufacturer | Dayton Audio |
| Type | Driver |
| Colour | Black |
| Coil | 25.4 mm |
| Hole | 110mmØ |
| QTY | 1 |
| Impedance | 8Ω (Re 6.22Ω) |
| Depth | 98mm |
| Voice | Aluminum |
| Sens. | 88.5dB |
| Re | 6.22Ω |
| Qms | 2.89 |
| Qes | 0.57 |
| Qts | 0.48 |
| Vas | 3.0L |
| Sd | 52.51 cm² |
| Cms | 0.765 mm/N |
| Bl | 5.08 Tm |
| Pmax | 80 watts |
| Fs | 87.5 Hz |
| Mms | 4.82g |
| Le | 0.63 mH |
| Xmax | 3.0 mm |
| Wire | CCA |
| Diam. | 121mmØ |
| Prms | 40W |
| Material | Cast Aluminum |
| Magnetic | Ferrite |
| Surround Material | Rubber |
| Series | Coaxial |
| Power (RMS) | 51-100 Watt |
| Power | 40W |
| Inch | 4 |
| Size | 4' |
| Impedance (Ohm) | 8 ohm |
| UPC | 848791003905 |
| Zn | 8Ω |
| Brand. | Dayton Audio |
| Price Type | each |
| SKU No | WES_CX120-8_1 |
