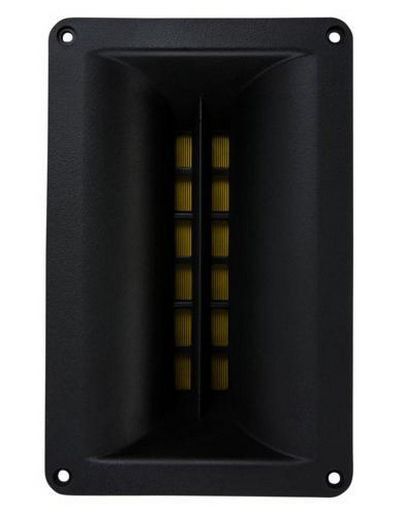

4 PLANAR TWEETER HORN - DAYTON AUDIO
PLANAR RIBBON KAPTON FILM MEMBRANE NEODYMIUM MAGNETS HOR
SKU code: WES_PHT1-6_2
This is a 4 PLANAR TWEETER HORN - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4 PLANAR TWEETER HORN - DAYTON AUDIO |
| Notes | PLANAR RIBBON KAPTON FILM MEMBRANE NEODYMIUM MAGNETS HORN LOADED Dayton Audio PHT1-6 provides the quick reflexes and smooth, non-fatiguing detail of a planar tweeter with horn-loaded efficiency and high power handling, creating the perfect high-frequency complement to powerful pro audio drivers or other high-sensitivity drivers.Planar tweeters offer a seductively smooth and richly-detailed sound, but most don’t have the ruggedness or reliability for use in pro audio and high-level studio monitoring applications. The Dayton Audio PHT1-6 Planar Horn Tweeter is different. It features a horn-loaded design that achieves the high sensitivity of many horn-loaded compression drivers, and its thermally robust Kapton diaphragm with etched aluminum conductor is rugged enough to handle the high power levels common in pro audio. Cooling is often a problem in planar drivers, but the PHT1-6 features a large rear-mounted aluminum heatsink that is thermally coupled to the membrane’s conductor and also evacuates heat from the transducer’s rear chamber, for extended component life and the ability to withstand peaks of 160 watts (80 watts RMS) when used with a 2500 Hz minimum crossover frequency (2nd order). The 6-ohm impedance helps the PHT1-6 maintain a high sensitivity, for use with virtually any pro audio or high-efficiency midbass driver.Low-compression planar horn designDetailed, non-fatiguing reproductionRugged, reinforced injection-molded horn flare Controlled, 60 degree horizontal dispersionHigh 80-watt RMS power handling |
| Description | 4' PLANAR TWEETER HORN - DAYTON AUDIO |
| Type | Planar |
| Size | 4' |
| Power | 80W |
| Coil | Planar |
| Impedance | 6Ω (Re 5.8Ω) |
| Depth | 80mm |
| Sens. | 105dB |
| Re | 5.8Ω |
| Zn | 6Ω |
| Le | 0.17mH |
| Diam. | 196x126mm |
| Manufacturer | Dayton Audio |
| Prms | 80W |
| Impedance (Ohm) | 6 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 4 |
| Series | Planar |
| Dimensions | 196x126x80mm |
| QTY | 1 |
| Hole | 181x83mm |
| Price Type | each |
| SKU No | WES_PHT1-6_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | PHT1-6 |
| SKU | WES_PHT1-6_2 |
| Brand | Dayton Audio |
