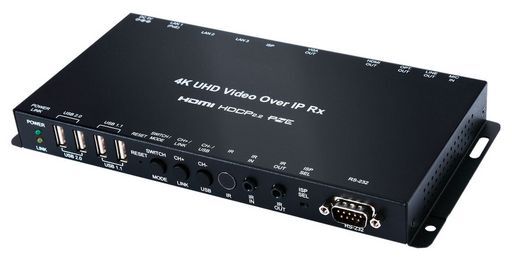

4K UHD HDMI/VGA OVER IP EXTENDER SYSTEM
WITH USB/KVM EXTENSION
SKU code: WES_CH-U331RX_1
This is a 4K UHD HDMI/VGA OVER IP EXTENDER SYSTEM of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4K UHD HDMI/VGA OVER IP EXTENDER SYSTEM |
| Notes | WITH USB/KVM EXTENSION This transmitter and receiver are part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of receivers within the same local network. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. This system is perfect for both residential and commercial installation environments. This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the Receiver), providing the user with a variety of audio options. The USB functionality allows the system to act like a remote USB hub which, when combined with the VGA input/output feature, provides a flexible remote KVM platform. Configuration information is provided via On Screen Display (OSD) and control is by WebGUI, Telnet, and front panel controls.Video, audio and USB/KVM transmission over TCP/IP over regular Cat.5e/6/7 network cable in Unicast (point-to-point) or Multicast (single-to-many) modesSupports HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz (YUV 4:4:4, 8-bit)Supports VGA input and output resolutions up to WUXGA (RB)Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI (Note: The optical output on Receivers can only support LPCM 2.0 & Bitstream sources.)The analogue Line In on the Transmitter sends audio directly to the analogue Line Out and is inserted into the HDMI output on connected ReceiversThe Mic In on the Receiver sends audio directly to the analogue Line Out on the TransmitterBoth Tx and Rx may powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)Supports USB keyboard, mouse and storage extensionThe receiver features 3 LAN ports, allowing multiple receivers to be daisy chained without the need for an external Gigabit Ethernet switchSupports IR and RS-232 bypassUnit has an info OSD (when unlinked) and can be controlled via WebGUI, Telnet, and front panel controls |
| Description | 4K UHD HDMI / USB / KVM over IP Receiver (100M) |
| 4K | Yes |
| AVLC | Yes |
| Bandwidth | 10.2Gbps |
| Cable Length | 100M (4K) |
| Chassis. | Metal |
| Compliance | HDMI 2.0 / DVI 1.0 |
| Dimensions | 232x108x25mm |
| Ethernet | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 1x 3.5mm Stereo |
| Interface | Receiver |
| IR | Yes |
| Max Res. | 4K@60Hz |
| Output | 1x HDMI, 1x VGA, 1x 3.5mm Stereo, 1x TOSLINK |
| Pass-through | 1x IR Extender, 1x IR blaster, 1x RS232, 3x LAN, 4x USB |
| PoE | PoE |
| RS-232 | Yes |
| Size | 232x108x25mm |
| Type | Receiver |
| Manufacturer | Cypress |
| SKU No | WES_CH-U331RX_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CH-U331RX |
| SKU | WES_CH-U331RX_1 |
| Brand | Cypress |
