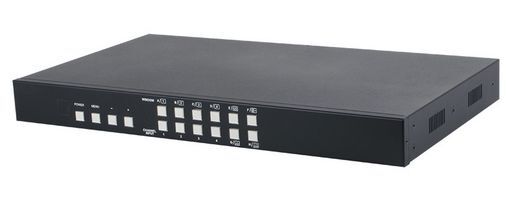

.4x1 HDMI V1.3 MULTI WINDOW SCALING SWITCH 1080P - CYPRESS
CYPRESS
SKU code: WES_CDPS-41SQN_1
This is a .4x1 HDMI V1.3 MULTI WINDOW SCALING SWITCH 1080P - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .4x1 HDMI V1.3 MULTI WINDOW SCALING SWITCH 1080P - CYPRESS |
| Notes | CYPRESS This switcher is a high performance, low latency, multi-windowing system that can be easily configured for a variety of professional video processing tasks. Up to 4 different input sources may be freely selected and arranged and output to a single display. When switched into single window mode the unit can be a seamless switcher with cross-fade support, or two sources can be combined with the use of chroma keying. 90-degree rotation is also supported when outputting a single full screen window. Additionally, the unit supports the option of uploading a graphic logo for display over the top of the output video. Video resolutions up to 1080p60 and PC resolutions up to WUXGA (RB) are supported along with audio up to 192kHz, 7.1 channel, LPCM for both inputs and output. The unit can be controlled in a wide variety of ways, including via front panel buttons with OSD menu, WebGUI, Telnet, RS-232, and IR remote.HDMI 1.3 and DVI 1.0 compatibleHDCP 1.4 compliantSeamless switching between sources and windowsSupports PiP, PoP, and multi-window displayEasy individual window size and position and layer priority adjustmentEnlarge or shrink up to 4 input windowsCrossfade, chroma key, mirror, and rotation (90˚ left/right and 180˚) functionsSupports the uploading of a user customizable graphic for display over the top of video output8 hot keys dedicated to window and source selection, 4 customizable window layout hot keys, and 4 software-only hot keys for additional stored window layout configurationsControl via front panel with OSD menu, WebGUI, Telnet, RS-232, and IR remote |
| Description | 4×1 HDMI Multi-Window Scaling Switcher |
| Input | 4x HDMI |
| Output | 1x HDMI |
| 3D | - |
| CEC | - |
| Chassis. | Metal |
| Compliance | 1.3 |
| EDID | - |
| HDCP | Yes |
| Interface | HDMI |
| Max Res. | 1080p |
| Manufacturer | Cypress |
| SKU No | WES_CDPS-41SQN_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CDPS-41SQN |
| SKU | WES_CDPS-41SQN_1 |
| Brand | Cypress |
