4X2 / 4X4 HDMI MATRIX 4K30 - CYPRESS
RS232 ETHERNET WEB GUI IR REMOTE CONTROL
SKU code: WES_CMPRO-4H2H_1

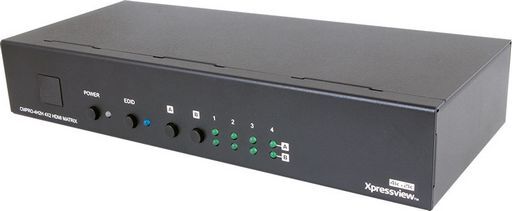

This is a 4X2 / 4X4 HDMI MATRIX 4K30 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4X2 / 4X4 HDMI MATRIX 4K30 - CYPRESS |
| Notes | RS232 ETHERNET WEB GUI IR REMOTE CONTROL The CMPRO-4H2H and CMPRO-4H4H are 4 by 2 and 4 by 4 4K HDMI matrixes respectively which allow HDMI signal from any of their four sources to be routed to and displayed on any of two or four connected HDMI displays simultaneously. With fast switching technology the device can greatly eliminate the time required by swapping or turning on/off the connected displays. It supports 3D, 10.2Gbps bandwidth, 12-bit Deep Colour, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote controller, RS-232 or Web GUI control.Supports HDTV resolutions up to 4K2K@30 HzSupports LPCM 7.1CH, Dolby® TrueHD, and DTS-HD Master AudioSupports 1080p@60 Hz, Deep Colour 48/36/30/24-bitSupports Internal/External EDIDSupports IR, RS-232, and Web GUI controls |
| Description | The CMPRO-4H2H Matrix is a 4 by 2 HDMI Matrix which allows HDMI signal from any of their four sources to be routed to and displayed on any of two connected HDMI displays simultaneously. With fast switching technology the device can greatly eliminate the time required by swapping or turning on/off the connected displays. It supports 3D, 3Gbps bandwidth, 12-bit Deep Colour, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote controller, RS-232 or Web GUI control. |
| Input | 4x HDMI |
| Output | 2x HDMI |
| 3D | Yes |
| CEC | - |
| EDID | Yes |
| HDCP | Yes |
| HD Audio | Yes |
| 4K | Yes |
| ARC | - |
| HEC | - |
| Deep Colour | Yes |
| Max Res. | 4K @ 30Hz |
| Brand. | Cypress |
| Manufacturer | Cypress |
| Interface | HDMI |
| SKU No | WES_CMPRO-4H2H_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CMPRO-4H2H |
| SKU | WES_CMPRO-4H2H_1 |
| Brand | Cypress |
