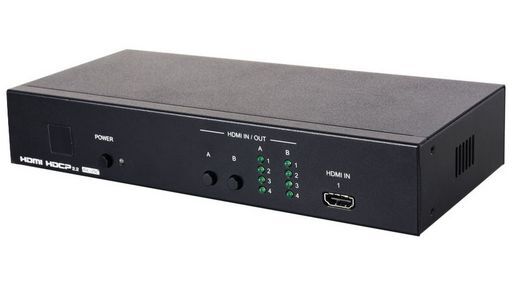

4x2 HDMI MATRIX 4K60 WITH IP CONTROL - CYPRESS
RS232 ETHERNET WEB GUI IR REMOTE CONTROL
SKU code: WES_CPLUS-V4H2HP_1
This is a 4x2 HDMI MATRIX 4K60 WITH IP CONTROL - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4x2 HDMI MATRIX 4K60 WITH IP CONTROL - CYPRESS |
| Notes | RS232 ETHERNET WEB GUI IR REMOTE CONTROL This 4×2 HDMI Matrix allows the customer to route up to four 18Gbps HDMI input signals to any of two 18Gbps HDMI outputs. This unit supports 4K@60Hz (4:4:4), 12-bit Deep Colour, HDR (High Dynamic Range), HD audio formats and other features defined by the HDMI 2.0 specification. Five pre-defined internal EDIDs and two external EDID options are available for EDID management. The unit provides intuitive front panel controls as well as RS-232, Telnet, WebGUI and IR remote control options.HDMI 2.0 and DVI 1.0 compliant, HDCP 1.4 and 2.2 compliantSupports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps HDMI outputsSupports resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)Maximum data rate up to 18Gbps with Deep Color support up to 12-bit at 1080pSupports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formatsEDID management via five internal EDIDs and two external EDID optionsMultiple control interfaces including RS-232, Telnet, WebGUI and IR remote |
| Description | 4K HDR 4×2 HDMI Matrix with IP control |
| 4K | Yes |
| Bandwidth | 18Gbps |
| Cable Length | 3M (4K) |
| Chassis. | Metal |
| Controller | 1×IR Extender, 1×RS-232, 1x RJ45(Control) |
| Dimensions | 240x112x48mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 4×HDMI |
| IR | Yes |
| Max Res. | 4K@60Hz (4:4:4) |
| Output | 2x HDMI |
| RS-232 | Yes |
| Size | 240x104x43mm |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-V4H2HP_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CPLUS-V4H2HP |
| SKU | WES_CPLUS-V4H2HP_1 |
| Brand | Cypress |
