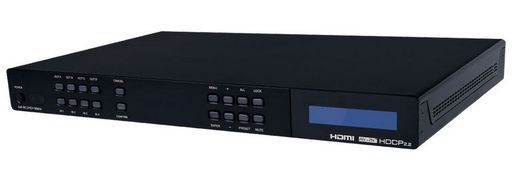

This is a 4x4 HDMI MATRIX 4K60 WITH SPDIF EXTRACTION & USB POWER - CYPRESS of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 4x4 HDMI MATRIX 4K60 WITH SPDIF EXTRACTION & USB POWER - CYPRESS
Notes RS232 ETHERNET WEB GUI IR REMOTE CONTROL This 4K UHD 4 by 4 Matrix provides the ability to connect up to four 4K UHD HDMI sources to up to four 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 48-bit Deep Colour, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. With a comprehensive EDID management feature that includes the ability to select between built in default EDID, EDID copied from connected sink devices, as well as a configurable EDID, this matrix can solve many interconnectivity problems.This unit also features four USB ports which supply up to 5V/1A power for use with connected optical fibre or AOC fibre cable extenders. By using these specialised cables your HDMI content can be extended much further than would be possible with normal HDMI cables. The built in OSD has the ability to display user editable general information text so each output can display up to 2 lines of customized text on top of the video source in the colour of your choice. This unit provides an intuitive set of front panel controls with an OSD as well as RS-232, telnet, WebGUI, and IR remote control options.HDMI input and output with 18Gbps (600MHz) 4K UHD supportDVI 1.0 compliant with the use of an HDMI-DVI adaptorHDCP 1.4 and 2.2 compliantSupports HD resolutions up to 3840×2160@60 Hz (YUV 4:4:4, 8-bit) & 4096×2160@60 Hz (YUV 4:4:4, 8-bit)Supports 48-bit Deep Color up to 1080p@60HzSupports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formatsSupports six internal EDIDs, four external EDIDs copied from connected devices, and four user provided EDIDsFour USB ports to supply 5V/1A power to optical fiber and AOC fiber extension cablesOSD with user customizable information textIntuitive control interface including telnet, WebGUI, OSD, IR remote, and RS-232Easy firmware update via USB thumb drive in field
Description4K HDR 4×4 HDMI Matrix with USB Power Supplying
4KYes
Bandwidth18Gbps
Cable Length10M (4K)
Chassis.Metal
Dimensions482x274x49mm
EDIDYes
HD AudioYes
HDCPYes
Input4×HDMI
Output4×HDMI, 4x USB(power: 5V 1A)
Controller1x IR In, 1x RS-232, 1x USB(service), 1x RJ45(Control)
IRYes
Max Res.4K@60Hz (4:4:4)
RS-232Yes
Size482x274x49mm
ManufacturerCypress
SKU NoWES_CPLUS-V4H4HP_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN CPLUS-V4H4HP
SKU WES_CPLUS-V4H4HP_1
Brand Cypress
