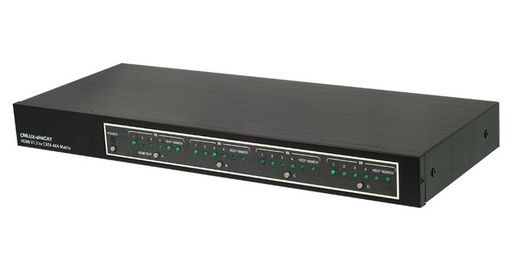

4x4 HDMI OVER DUAL CAT6 MATRIX TRANSMITTER 1080P - CYPRESS
REMOTE CONTROLLED - HIGH PERFORMANCE
SKU code: WES_CMLUX-4H4CAT_2
This is a 4x4 HDMI OVER DUAL CAT6 MATRIX TRANSMITTER 1080P - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4x4 HDMI OVER DUAL CAT6 MATRIX TRANSMITTER 1080P - CYPRESS |
| Notes | REMOTE CONTROLLED - HIGH PERFORMANCE The CMLUX-4H4CAT is a 4 by 4 HDMI over CAT6 Matrix that is a high performance device, boasting features such as a remote control, IR blaster and IR receiver. Compatible with Deep Colour Video and high definition digital audio, this device has the ability to direct any of its four HDMI sources to any of the four HDMI displays, with each display showing a different source. CAT 6 cables for long operating distance (50M at 1080p 8 bits). Four individual output IR blasters for controlling input sources.HDCP 1.1 and DVI 1.0 compliant. Deep Colour Video of up to 36 bits (12 bits/colour) and high definition. Dolby® True HD, Dolby® Digital Plus and DTS-HD Master Audio) When the HDMI signal passes through this device it is compensated, clock/phase adjusted and jitter free. Supports PC and HDTV resolutions from VGA to UXGA and 480i to 1080p.Has RS-232 control. Supports IR remote control with an IR extender and blaster. Dolby® Digital, DTS digital audio transmission (32-192 kHz Fs sample rate). Indicates whether the source is HDCP, HDMI or DVI via an LED light. Cable testing showed that at 1080p/8 or 12 bits resolution up to 50M and the input & output source(s) can be up to 15 metres away. Includes remote control receiver and transmitter units. Use with CH106, CH1106, CLUX22HC, CLUX-1H4/8CAT |
| Description | TX Matrix - 4x HDMI input to 4x Twin Cat-6 |
| Max. | 45M/8Bit or 15M/12Bit |
| Input | 4x HDMI |
| Output | 4x Dual CAT6 |
| Compliance | 1.3 |
| 3D | Yes |
| CEC | - |
| EDID | Yes |
| HDCP | Yes |
| Max Res. | 1080p |
| Page | 29 |
| HDMI Input | 4 |
| Cat6/6ex2 Input | 4 |
| Extension Cables | 4 Dual |
| Cable Length | 45M @ 8-bit, 15M @ 12-bit |
| Manufacturer | Cypress |
| Cable | Dual CAT6/7 |
| Power | PoC |
| Device Type | TX Matrix |
| Interface | TX Matrix 4x4 |
| IR | Yes |
| SKU No | WES_CMLUX-4H4CAT_2 |
