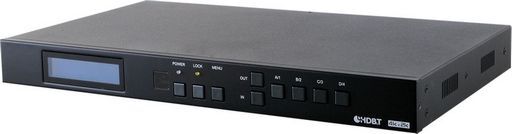

This is a 4x4 HDMI OVER HDBaseT MATRIX 4K30 WITH LAN SERVING - CYPRESS of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 4x4 HDMI OVER HDBaseT MATRIX 4K30 WITH LAN SERVING - CYPRESS
Notes CYPRESS These HDBase-T matrixes support the transmission of high quality video at up to 4K resolution over a single CAT5e/6/7 cable (up to 100m at 1080p and 70m at 4K30) for each output. They support pass-through of high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. They support control from IR or a RS-232 pass-though. Power over Cable (PoC) function can power compatible receivers. And finally a LAN serving port allows a network connection to smart TVs or game console. Available in 4x4 and 8x8 models. Requires HDBaseT to 4K HDMI receivers.HDMI, HDCP 1.1 and DVI compliantSupports resolutions VGA~WUXGA and 480i~1080p/4K2K dependent upon the output display’s EDID settingsSupports 3D signal display dependent upon the output display EDID settingsSupports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmissionSupports distances up to 100 metres through CAT6/7 cablesSupports HDMI input up to 15 metres at 8-bit or 10 metres at 12-bit resolutionSupports LAN serving function through the LAN portSupports PoC (Power over Cable) on compatible receivers onlySupports bi-directional IR from input and output locationsSupports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)Supports external and internal EDID settings Requires HDMI over HDBaseT receivers such as: CH-506RXPL
DescriptionThis 4K2K capable HDBaseT™ 4 by 4 HDMI Matrix supports the transmission of video (resolutions up to 1080p/4K2K), multi-channel digital audio and source control via 2 way IR, RS-232 pass-through, from four HDMI sources to four HDBaseT outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D source and 3D display. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Ethernet (PoE) function can power compatible receivers, providing greater flexibility in installations.
Input4x HDMI
Output4x CAT5e/6/7
Cable Length100M
3DYes
HDCPYes
RS232 ExtensionYes
IR ExtensionYes
PoEYes
EthernetYes
HD AudioYes
4KYes
RS-232Yes
Max Res.4K @ 30Hz
Compatible withCH-507RX
CEC-
EDID-
Brand.Cypress
ManufacturerCypress
IRYes
SKU NoWES_CMPRO-U4H4CVE_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN CMPRO-U4H4CVE
SKU WES_CMPRO-U4H4CVE_1
Brand Cypress
