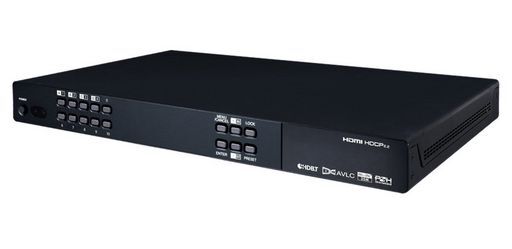

4x4 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC - CYPRESS
4x4 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC SUPPORTS IR,
SKU code: WES_CPLUS-44PLV_1
This is a 4x4 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 4x4 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC - CYPRESS |
| Notes | 4x4 HDMI OVER HDBaseT MATRIX 4K60 WITH AVLC SUPPORTS IR, RS-232 & PoH This Matrix supports routing and transmission of video (resolutions up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.2) and audio (multi-channel digital/stereo analog) while providing flexible control via IR, RS-232, Telnet or WebGUI. As many as four UHD sources may be routed to any of four destinations via a single Cat.5e/6/7 cable (up to 70m at 1080p or up to 35m at 4K). Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to a compatible AVLC Receiver.This product also provides an array of options for routing audio. To start, it supports passing 7.1 channel LPCM digital audio as well as advanced Bitstream and HD Bitstream audio formats via HDMI/HDBaseT. Additionally, four analog audio outputs are available to provide stereo breakout zone audio from the associated HDBaseT output (LPCM 2.0 sources only).Internally generated test patterns (up to 4K@60Hz) are provided to assist with setup, providing a simple way to verify matrix functionality. The 48V PoH (Power over HDBaseT) function can provide power to compatible receivers, providing greater flexibility in installations. Control is via manual selection buttons, WebGUI, Telnet, RS-232 or IR remote.HDMI 2.0 and HDBaseT 1.0 compatibleHDCP 1.4 and HDCP 2.2 compliantRoutes four HDMI sources to four displays using four HDBaseT outputsSupports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and outputNote: Support of resolutions requiring bandwidth above 10.2Gbps via HDBaseT requires a compatible AVLC Receiver.Supports Deep Color input and output up to 12-bitSupports 10-bit and 12-bit HDR (High Dynamic Range) input/outputHDBaseT feature support: HD Video and Audio, 48V PoH and Control (bidirectional IR/RS-232 pass-through)Supports standard 48V PoH from the unit (PSE) to connected HDBaseT Receivers (PD) (compatible Receivers only)HDBaseT outputs provide simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 70m/230ft at 1080p and 35m/115ft at 4KIntegrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual qualityThe AVLC function allows manual selection between High Quality (Full bandwidth) and Medium Quality modes (Lower bandwidth, useful for longer cable runs with 4K sources)Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 conversion for compatibility with non-AVLC HDBaseT ReceiversSupports pass-through of all standard digital audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD BitstreamHigh-quality Digital to Analog audio Conversion (DAC)Advanced internal and external EDID management with 4 sets of configurable EDID settingsBasic internal test pattern generation with test signals up to 4K@60Hz for testing video pathsPer-output OSD Banner Information functionControl via front panel controls, Ethernet (Telnet & WebGUI), RS-232, & IR remote1U rack mounted design Requires HDMI over HDBaseT receivers such as: CH-1527RXPLV |
| Description | 4×4 HDMI over HDBaseT Matrix with IR, RS-232 & PoH (PSE) - AVLC Compatible |
| 4K | Yes |
| AVLC | Yes |
| Bandwidth | HDBaseT: 10.2Gbps |
| Cable Length | HDBaseT: 35M (4K@30Hz) via Cat5e/6 |
| Chassis. | Metal |
| Controller | 1x RS-232, 1x RJ45 (Control) |
| Dimensions | 438x270x44mm |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| Input | 4× HDMI |
| IR | Yes |
| Max Res. | 4K@60Hz (4:4:4) |
| Output | 4x Cat.5e/6/7 (HDBaseT), 8x RCA (Stereo L/R) |
| Pass-through | 5×IR Extenders, 5×IR Blasters |
| PoE | PoH |
| Receiver | CH-1527RXPLV |
| RS-232 | Yes |
| Size | 438x270x44mm |
| Compatible with | CH-1527RXPLV |
| Manufacturer | Cypress |
| SKU No | WES_CPLUS-44PLV_1 |
